Support claw
Type TGK 30 42 FT
Item no. 6018963
EAN 4012196014415
Item no. / Type
6018963 / TGK 30 42 FT
Smallest selling unit: 10 piece
10piece
piece
Description

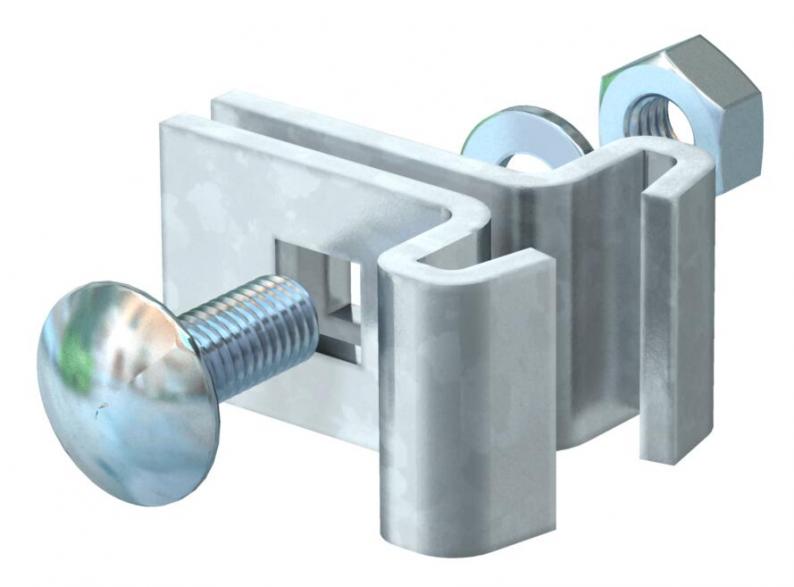

Support claw with truss-head bolt, type FRS M10 x 25 for mounting on the IS 8 support.
Can also be used in conjunction with the heavyweight ladder, type SLS 80.
Technical data

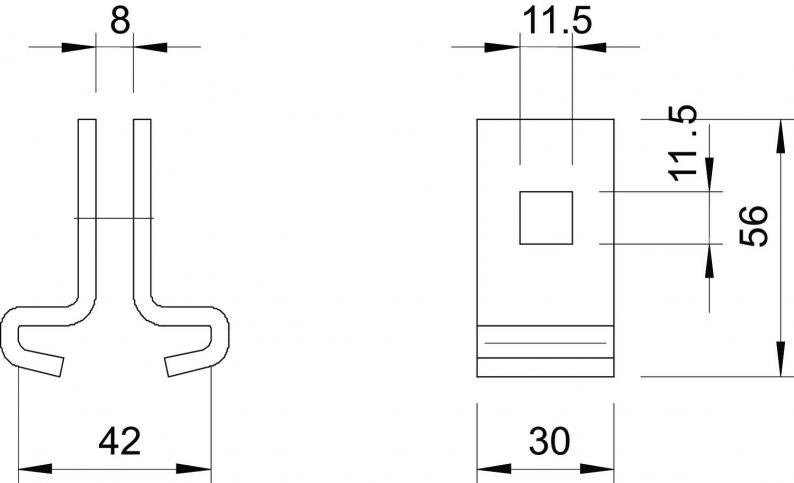

Dimensions
| Length | 56 mm |
|---|---|
| Width | 30 mm |
| Height | 42 mm |
Technical data
| Dimension | 56 x 30 |
|---|---|
| ROHS-conformant | yes |
| Dimension | 56x30 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,4518 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4518 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,4518 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
