Strain relief clip 7903

Strain relief clip 7903

Type 7903 9 G
Item no. 1437038
EAN 4012195135197
Show all variants
Item no. / Type
Material thickness
For diameter
Hole size

Smallest selling unit: 100 piece

piece

Description

Fastening clip for strain relief of cables
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

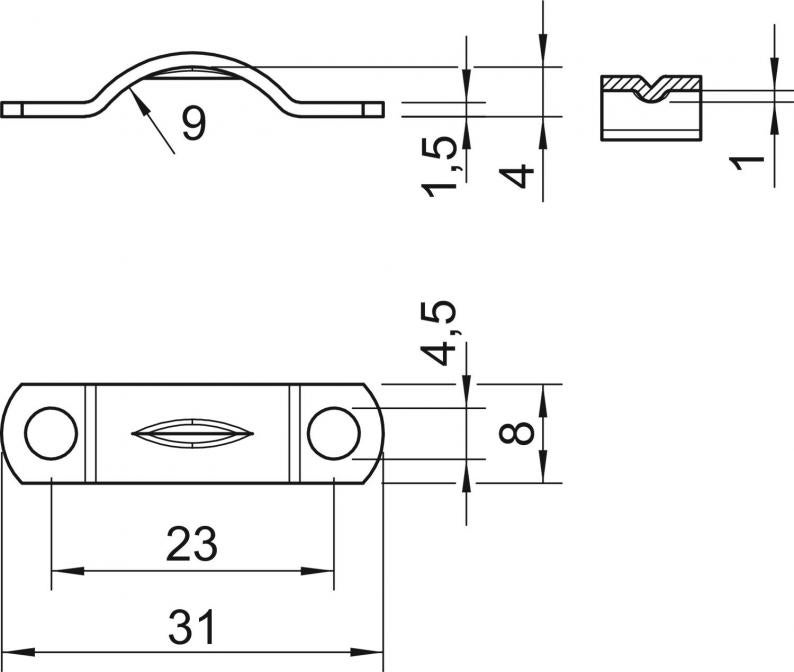

Dimensions

Length31 mm
Width8 mm
Height4 mm
Dimension L31 mm
Dimension d4,5 mm
Dimension t1,5 mm
Dimension b8 mm
Dimension l23 mm
Dimension H1 (mm)1
Dimension h4 mm
Dimension R9 mm

Technical data

Material thickness1 mm
For diameter9
Hole size4,5
Halogen-freeyes
SizeIII
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter9 mm
Distance to the wallno
Version forTwo-lobe
Fastening typeScrew hole
ROHS-conformantyes
Clamping range D, min.9 mm
Clamping range D, max.9 mm
Dimension9mm
SurfaceElectrogalvanised
MaterialSteel
Product seriesFastening clip

Environmental Data

0,0099 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0099 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0099 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Material thickness
For diameter
Hole size
7903 6 G
Item no.
1437003
Material thickness
0,5
For diameter
6
Hole size
2,5
7903 8 G
Item no.
1437011
Material thickness
0,8
For diameter
8
Hole size
3,6
7903 9 G
Item no.
1437038
Material thickness
1
For diameter
9
Hole size
4,5
