Strain relief clip 7901

Strain relief clip 7901

Type 7901 6.5 G
Item no. 1435027
EAN 4012195134893
Show all variants
Item no. / Type
Material thickness
For diameter
Hole size

Smallest selling unit: 100 piece

piece

Description

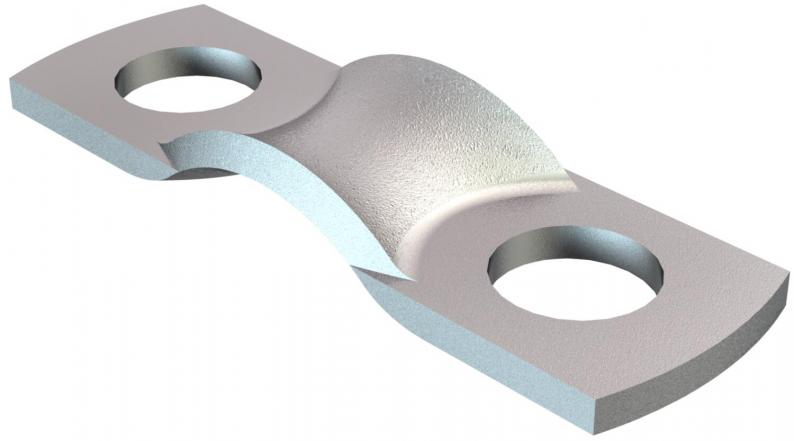

Fastening clip for strain relief of cables
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length23 mm
Width7 mm
Height1,6 mm
Dimension L23 mm
Dimension d3,2 mm
Dimension t1 mm
Dimension b7 mm
Dimension a1 (mm)8 mm
Dimension l16 mm
Dimension H1 (mm)1,2
Dimension h1,6 mm
Dimension R6,5 mm
Dimension (mm)8 mm
Dimension r1 (mm)5
Dimension a24 mm

Technical data

Material thickness1 mm
For diameter6,5
Hole size3,2
Halogen-freeyes
SizeII
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter6,5 mm
Distance to the wallno
Version forTwo-lobe
Fastening typeScrew hole
ROHS-conformantyes
Clamping range D, min.6,5 mm
Clamping range D, max.6,5 mm
Dimension6,5mm
SurfaceElectrogalvanised
MaterialSteel
Product seriesFastening clip

Environmental Data

0,0031 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0031 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0031 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Material thickness
For diameter
Hole size
7901 5 G
Item no.
1435019
Material thickness
0,8
For diameter
5
Hole size
3,5
7901 6.5 G
Item no.
1435027
Material thickness
1
For diameter
6,5
Hole size
3,2
