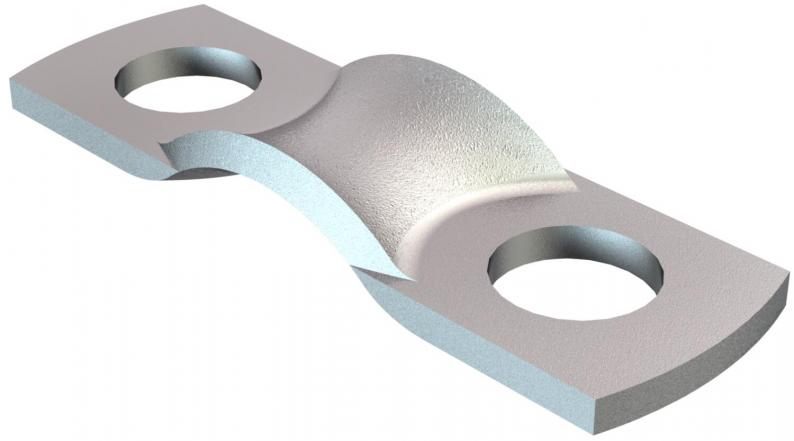

Strain relief clip 7901

Strain relief clip 7901

Type 7901 5 G
|
Item no. 1435019
|
EAN 4012195134831
Show all variants
Item no. / Type
Material thickness
For diameter
Hole size

Smallest selling unit: 100 piece

piece

Description

Strain relief clip 5 mm
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length19 mm
Width6 mm
Height1,6 mm
Dimension L19 mm
Dimension d3,5 mm
Dimension t0,8 mm
Dimension b6 mm
Dimension a1 (mm)6,5 mm
Dimension l12 mm
Dimension H1 (mm)0,8
Dimension h1,6 mm
Dimension R5 mm
Dimension (mm)4 mm
Dimension r1 (mm)5
Dimension a24 mm

Technical data

Material thickness0,8 mm
For diameter5
Hole size3,5
Halogen-freeyes
SizeI
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter5 mm
Distance to the wallno
Version forTwo-lobe
Fastening typeScrew hole
ROHS-conformantyes
Clamping range D, min.5 mm
Clamping range D, max.5 mm
Dimension5mm
SurfaceElectrogalvanised
MaterialSteel
Product seriesFastening clip

Environmental Data

0,0017 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0017 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0017 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Material thickness
For diameter
Hole size
7901 5 G
Item no.
1435019
Material thickness
0,8
For diameter
5
Hole size
3,5
7901 6.5 G
Item no.
1435027
Material thickness
1
For diameter
6,5
Hole size
3,2
