Straight connector, external, for SKSU 6,000 mm

Straight connector, external, for SKSU 6,000 mm

Type RLVA 110 FT
Item no. 6067057
EAN 4012197426071
Show all variants
Item no. / Type
Width
Height

Smallest selling unit: 2 piece

piece

Description

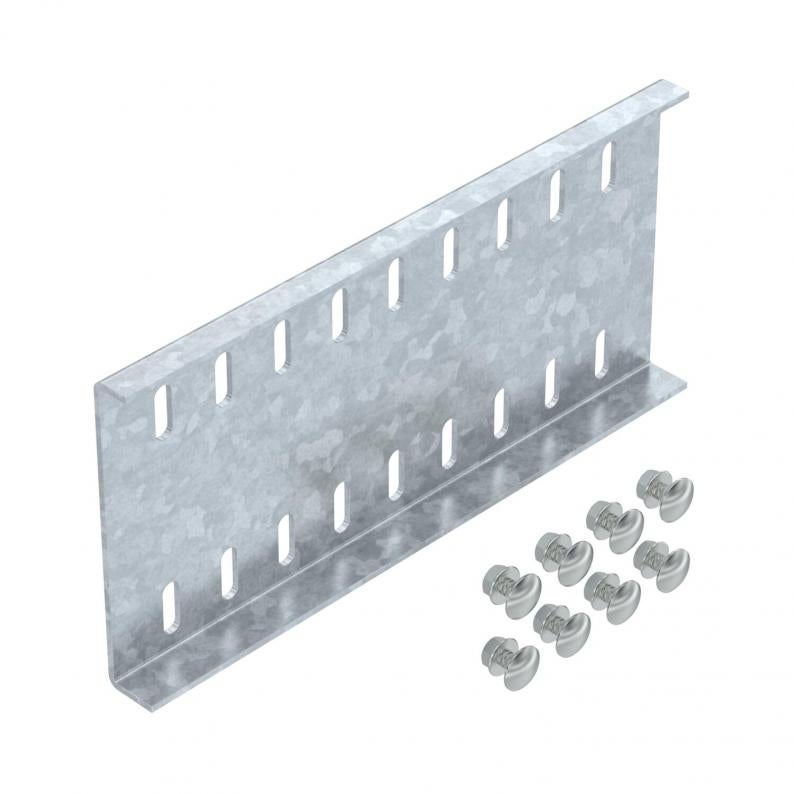

Straight connector for a straight, screwed connection of cable trays SKSU 6,000 mm.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable tray, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

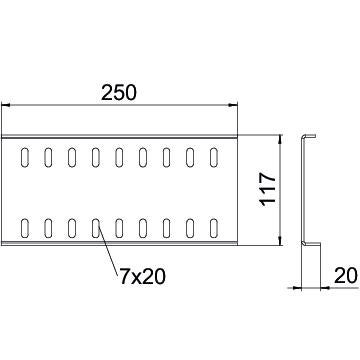

Dimensions

Length250 mm
Width20 mm
Height117 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Adjustable connector, horizontalno
Articulated connector, verticalno
Suitable for cable tray system height110 mm
Version forStraight connector
Connection typeScrew connector
Dimension117x20x250
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

1,7959 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,7959 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,7959 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
Height
RLVA 110 FT
Item no.
6067057
Width
20
Height
117
Colour
zinc
RLVK 60 FT
Item no.
6067603
Width
3,5
Height
56
Plate thickness
2
Colour
zinc
