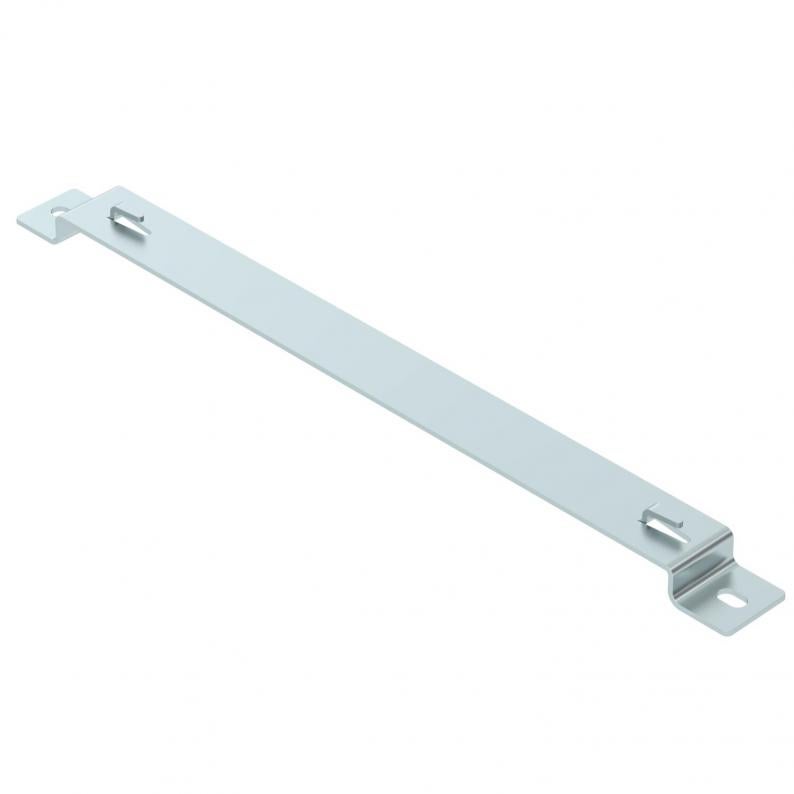

Stand-off bracket FS
Type DBLG 20 400 FS
Item no. 6015689
EAN 4012196961764
Item no. / Type
Smallest selling unit: 20 piece
20piece
piece
Description
Spacer clamps for the elevation of mesh cable trays on the floor or on the wall.
Technical data

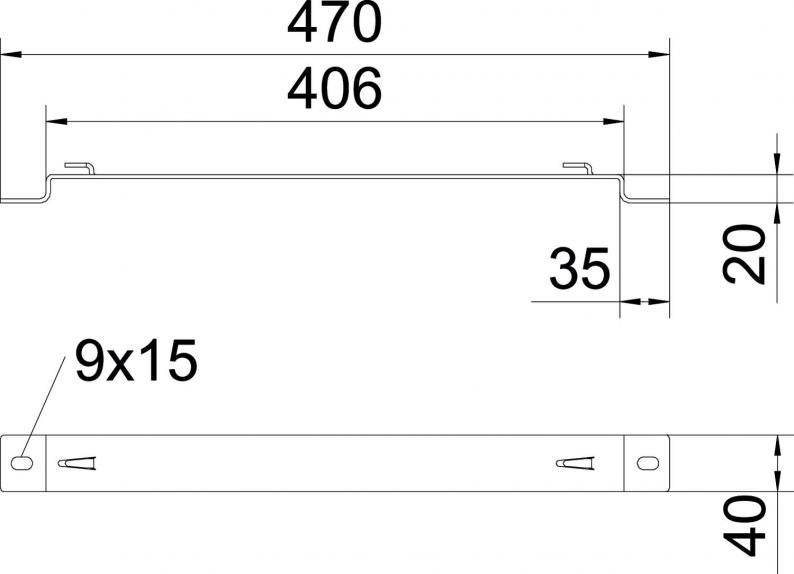

Dimensions
| Length | 40 mm |
|---|---|
| Width | 470 mm |
| Height | 20 mm |
| Dimension L | 40 mm |
| Dimension H | 20 mm |
| Dimension W | 470 mm |
| Dimension NW | 406 mm |
Technical data
| Material thickness | 3 mm |
|---|---|
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Version for | Wall/ceiling clamp, trapezoidal profile |
| Tray fastening | Retaining lug |
| ROHS-conformant | yes |
| Dimension | B400mm |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
1,0749 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0749 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 1,0749 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Tray fastening
Surface
Material
Item no.
DBLG 20 050 FS
Retaining lug
Strip galvanised
Steel
6015646
DBLG 20 100 FS
Retaining lug
Strip galvanised
Steel
6015654
DBLG 20 150 FS
Retaining lug
Strip galvanised
Steel
6015658
DBLG 20 200 FS
Retaining lug
Strip galvanised
Steel
6015662
DBLG 20 300 FS
Retaining lug
Strip galvanised
Steel
6015670
DBLG 20 400 FS
Retaining lug
Strip galvanised
Steel
6015689
DBLG 20 500 FS
Retaining lug
Strip galvanised
Steel
6015693
DBLG 20 600 FS
Retaining lug
Strip galvanised
Steel
6015697
DBLG 20 050 FS
Item no.
6015646
Tray fastening
Retaining lug
Surface
Strip galvanised
Material
Steel
DBLG 20 100 FS
Item no.
6015654
Tray fastening
Retaining lug
Surface
Strip galvanised
Material
Steel
DBLG 20 150 FS
Item no.
6015658
Tray fastening
Retaining lug
Surface
Strip galvanised
Material
Steel
DBLG 20 200 FS
Item no.
6015662
Tray fastening
Retaining lug
Surface
Strip galvanised
Material
Steel
DBLG 20 300 FS
Item no.
6015670
Tray fastening
Retaining lug
Surface
Strip galvanised
Material
Steel
DBLG 20 400 FS
Item no.
6015689
Tray fastening
Retaining lug
Surface
Strip galvanised
Material
Steel
DBLG 20 500 FS
Item no.
6015693
Tray fastening
Retaining lug
Surface
Strip galvanised
Material
Steel
DBLG 20 600 FS
Item no.
6015697
Tray fastening
Retaining lug
Surface
Strip galvanised
Material
Steel
