Set of Quick clips and Quick pipe pipes
Type 2954 M16 LGR
|Item no. 2154501
|EAN 4012195482895
Item no. / Type
Size
Smallest selling unit: 1 piece
1piece
piece
Description

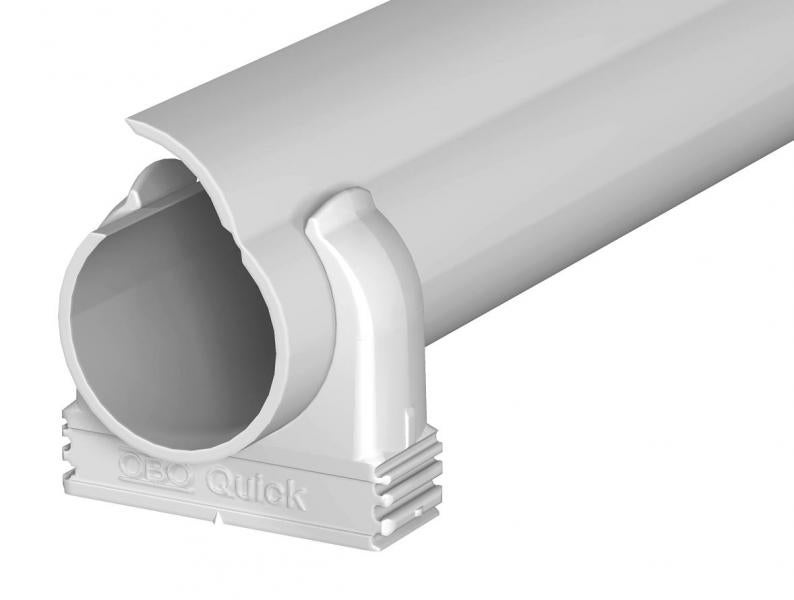

Set consisting of Quick pipe electrical installation pipes and Quick clip surface-mounted clips. For surface-mounted routing of cables in interiors and protected outdoor areas. Universal fastening on wall and ceiling. Comprises 50 m of pipe with each pipe 2 metres in length and 156 Quick clips. Can be used in a temperature range of –25 to + 60 °C.
Technical data
Technical data
| Halogen-free | no |
|---|---|
| Size | M16 |
| Flame-resistant version | no |
| Classification code | 0 |
| Concealed | no |
| Surface-mounted | yes |
| Concrete installation | yes |
| Machines and system installation | yes |
| Underfloor installation (screed) | no |
| Installation outdoors | no |
| Installation on wood | yes |
| Installation in the earth | no |
| With sleeve | no |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | M16 |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |

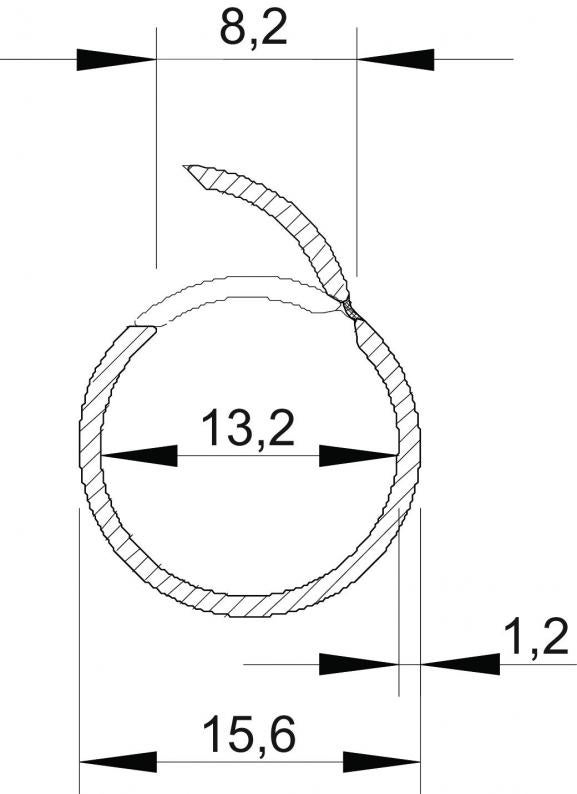

Dimensions
| Dimension t | 1,2 mm |
|---|---|
| Dimension C | 8,2 mm |
| Dimension D | 15,6 mm |
Environmental Data
9,7388 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 9,7388 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 9,7388 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
DP GM6 30
2351673
Smallest selling unit: 100 piece
100piece
piece
Item no. 2351673
Push-fit plug Delta-Push® with M6 threadType
DP GM6 30
Smallest selling unit: 100 piece
100piece
piece
