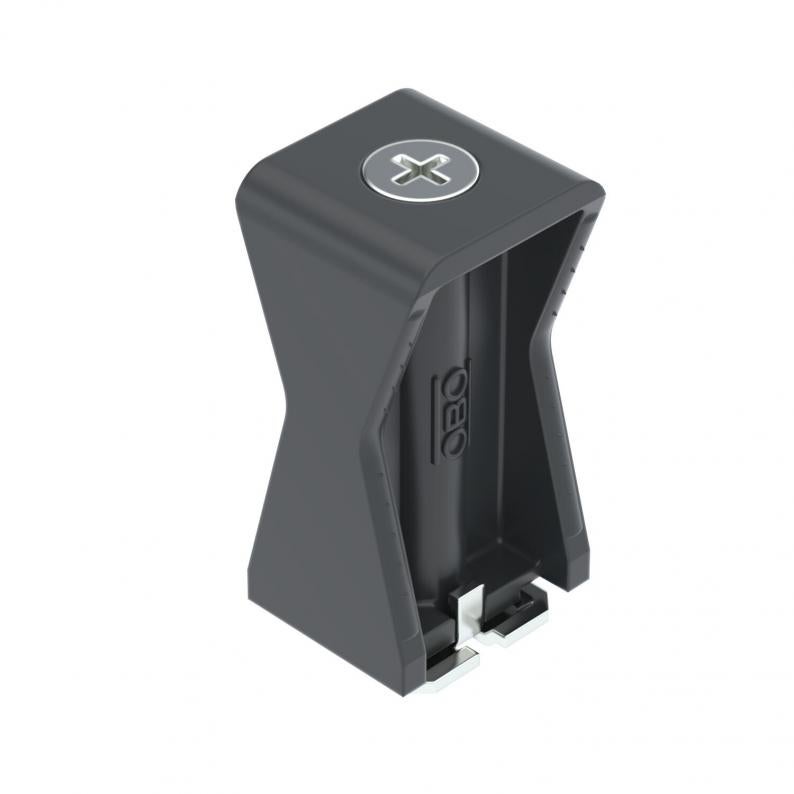

Series clip, black

Series clip, black

Type 2051 8-36 SW
Item no. 2254565
EAN 4012195615019
Show all variants
Item no. / Type
Clamping range D, min.
Clamping range D, max.
Colour

Smallest selling unit: 100 piece

piece

Description

Also suitable for rails of 11 ÷ 12 mm slot width; polystyrene clip element, impact resistant, halogen-free, light grey RAL 7035; metal parts: electrogalvanised steel.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11–12 mm
  • Packaging without plastic
  • CO₂ footprint (PCF)

Technical data

Technical data

for rail with slot width (with interval), min.11 mm
for rail with slot width (with interval), max.12 mm
Impact-resistantno
Halogen-freeyes
UV-resistantno
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
BoltM4 x 40
Nominal diameter36 mm
Distance to the wallno
Fastening typeRail fastening
ROHS-conformantyes
Clamping range D, min.8 mm
Clamping range D, max.36 mm
Dimension8-36mm
MaterialPolystyrene
ColourGraphite black; RAL 9011
Product seriesFastening clip

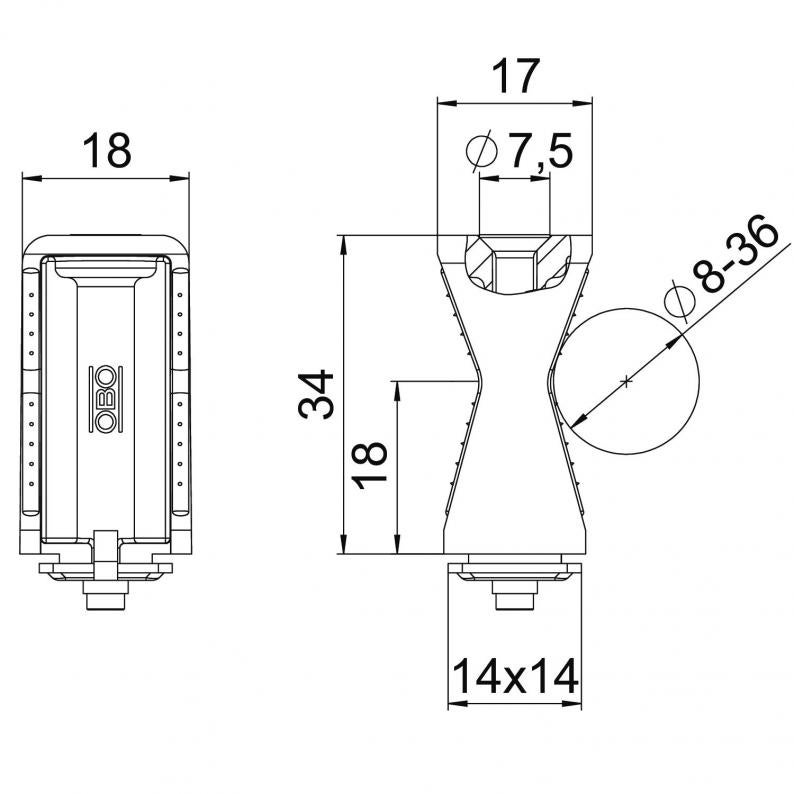

Dimensions

Dimension B17 mm
Dimension H34 mm
Dimension H118 mm
Dimension B17,5 mm

Environmental Data

0,0302 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0302 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0302 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Product images (4)
Tender specifications (1)

Variants

Colour
2051 8-36 LGR
Item no.
2254034
Bolt
M4 x 40
Clamping range D, min.
8
Clamping range D, max.
36
Colour
Light grey; RAL 7035
2051 8-36 SW
Item no.
2254565
Bolt
M4 x 40
Clamping range D, min.
8
Clamping range D, max.
36
Colour
Graphite black; RAL 9011
