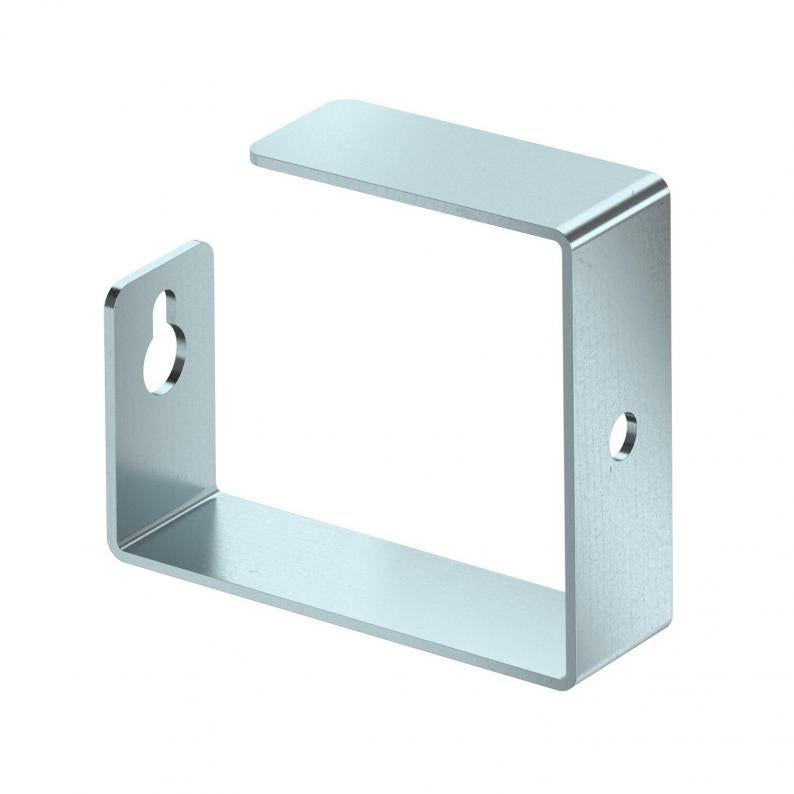

Separating clamp for ceiling mounting
Type PLCD-SC1220
Item no. 7215494
EAN 4012196835430
Item no. / Type
Dimension A
Dimension B
Dimension H
Dimension h
Dimension b
Smallest selling unit: 25 piece
25piece
piece
Description
Separating clamp as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the ceiling, type PLCD D061220 and type PLCD D091220. Mounting of the clamp directly on the fastening anchors of the fire protection duct.
Technical data
Dimensions
| Dimension A | 50 mm |
|---|---|
| Dimension B | 100 mm |
| Dimension H | 116 mm |
| Dimension b | 60 mm |
| Dimension h | 80 mm |
Technical data
| Duct height, internal | 120 mm |
|---|---|
| Duct width, internal | 200 mm |
| Fastening type | Screw-on |
| ROHS-conformant | yes |
| Dimension | 116x80x35 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Product series | PYROLINE® con PLC |
Environmental Data
0,7167 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7167 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,7167 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
