Screw plug, PG thread

Screw plug, PG thread

Type 168 MS PG 9 + O
Item no. 2090612
EAN 4012197455644
Show all variants
Item no. / Type
Thread

Smallest selling unit: 100 piece

piece

Description

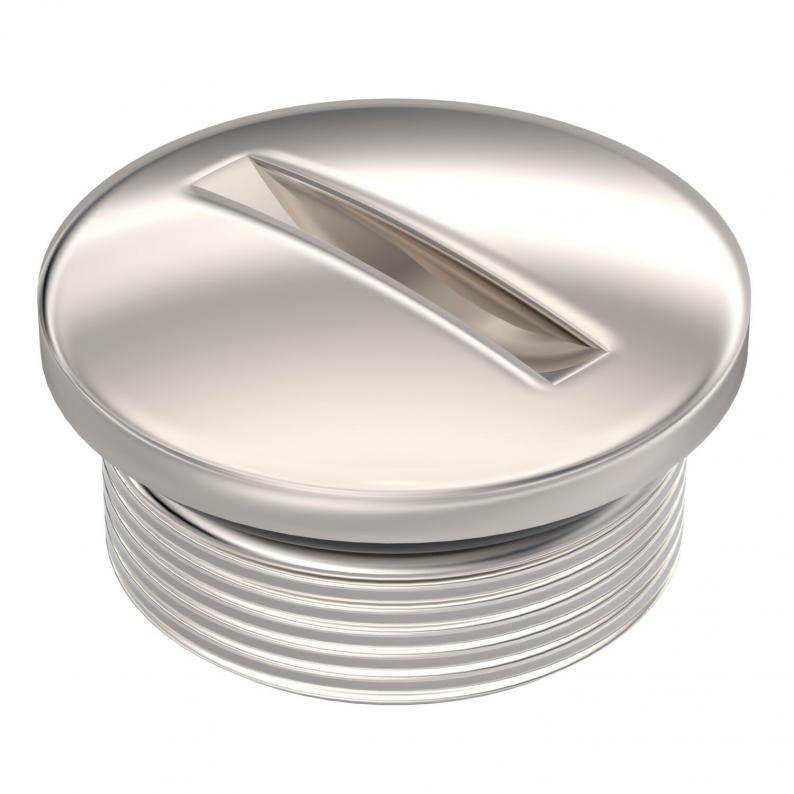

Metal screw plug with integrated sealing ring To close unused threaded openings, e.g. in housings or junction and branch boxes. With PG thread to DIN EN 46320 or DIN 40430. Protection class IP 68 (5 bar/1 h).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread Pg
  • Protection rating IP 68
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

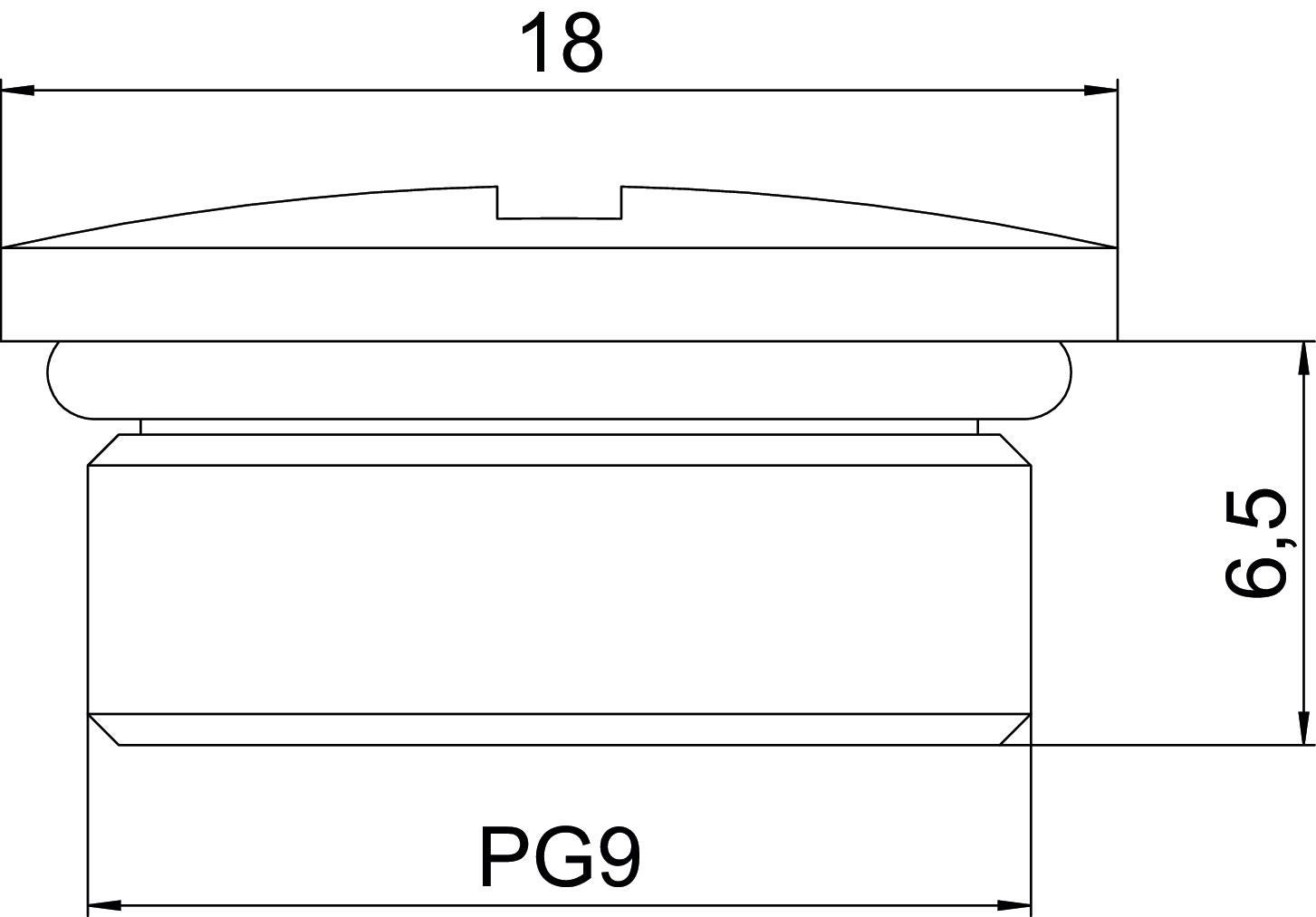

Dimensions

Length18 mm
Width18 mm
Height9 mm
Dimension L6,5 mm
Dimension D18 mm

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Protection ratingIP68
ThreadPg 9
Thread typePG
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,41 mm
Nominal thread size metric/PG9
DimensionØ18x9
SurfaceNickel-plated
MaterialBrass
Product seriesThreaded connection accessories

Environmental Data

0,0004 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0004 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0004 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (1)

Variants

Thread
168 MS PG 7 + O
Item no.
2090610
Thread
Pg 7
168 MS PG 9 + O
Item no.
2090612
Thread
Pg 9
168 MS PG11 + O
Item no.
2090614
Thread
Pg 11
168 MS PG13 + O
Item no.
2090616
Thread
Pg 13,5
168 MS PG16 + O
Item no.
2090618
Thread
Pg 16
168 MS PG21 + O
Item no.
2090620
Thread
Pg 21
168 MS PG29 + O
Item no.
2090624
Thread
Pg 29
168 MS PG36 + O
Item no.
2090626
Thread
Pg 36
168 MS PG42 + O
Item no.
2090630
Thread
Pg 42
168 MS PG48 + O
Item no.
2090632
Thread
Pg 48
