Screw plug, PG thread

Screw plug, PG thread

Type 168 MS PG21 + O
Item no. 2090620
EAN 4012197455804
Show all variants
Item no. / Type
Thread

Smallest selling unit: 50 piece

piece

Description

Metal screw plug with integrated sealing ring To close unused threaded openings, e.g. in housings or junction and branch boxes. With PG thread to DIN EN 46320 or DIN 40430. Protection class IP 68 (5 bar/1 h).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread Pg
  • Protection rating IP 68
  • Packaging without plastic
  • CO₂ footprint (PCF)

Technical data

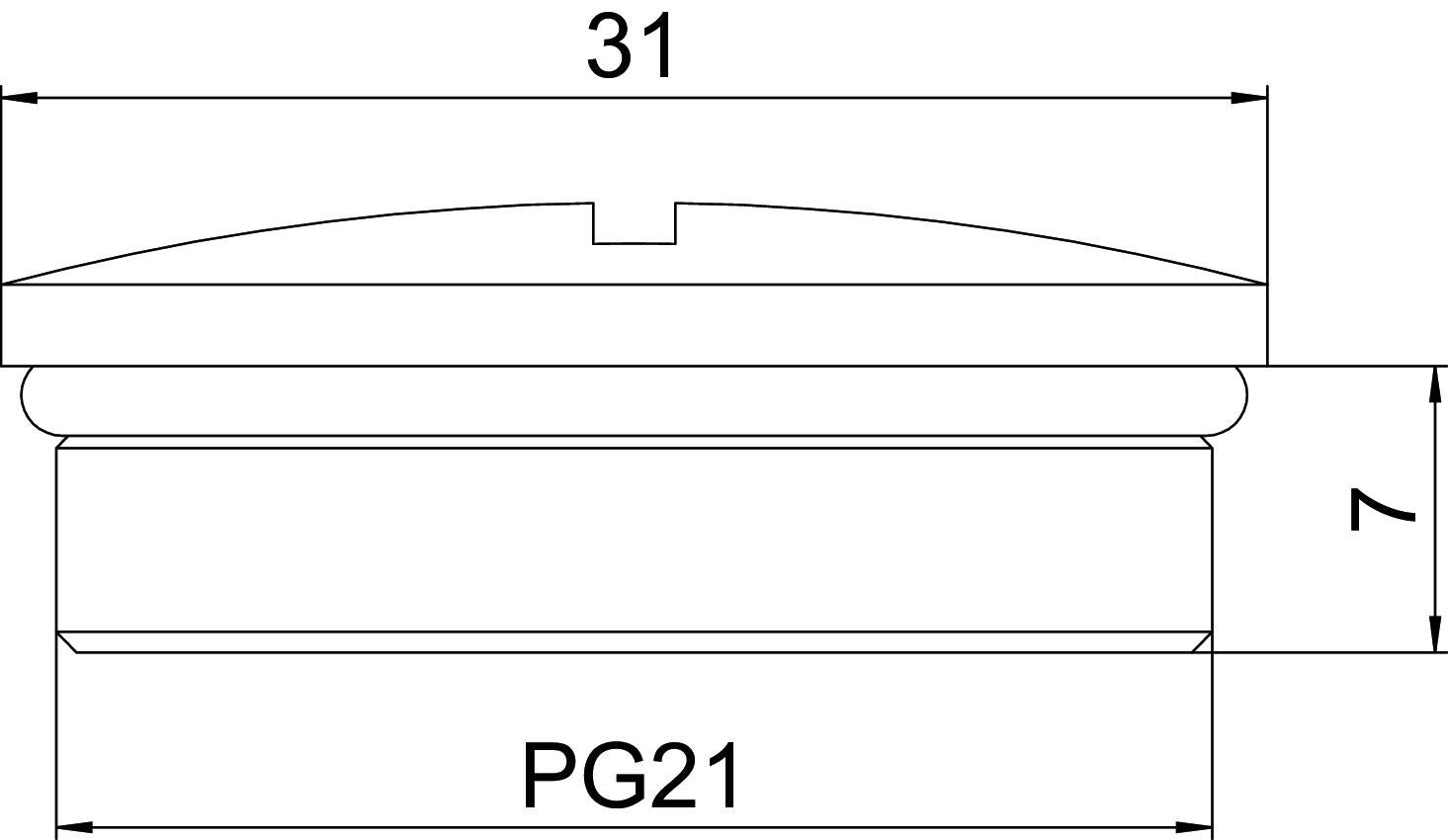

Dimensions

Length31 mm
Width31 mm
Height11 mm
Dimension L7 mm
Dimension D31 mm

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Protection ratingIP68
ThreadPg 21
Thread typePG
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,59 mm
Nominal thread size metric/PG21
DimensionØ31x11
SurfaceNickel-plated
MaterialBrass
Product seriesThreaded connection accessories

Environmental Data

0,0017 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0017 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0017 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (1)

Variants

Thread
168 MS PG 7 + O
Item no.
2090610
Thread
Pg 7
168 MS PG 9 + O
Item no.
2090612
Thread
Pg 9
168 MS PG11 + O
Item no.
2090614
Thread
Pg 11
168 MS PG13 + O
Item no.
2090616
Thread
Pg 13,5
168 MS PG16 + O
Item no.
2090618
Thread
Pg 16
168 MS PG21 + O
Item no.
2090620
Thread
Pg 21
168 MS PG29 + O
Item no.
2090624
Thread
Pg 29
168 MS PG36 + O
Item no.
2090626
Thread
Pg 36
168 MS PG42 + O
Item no.
2090630
Thread
Pg 42
168 MS PG48 + O
Item no.
2090632
Thread
Pg 48
