Screw plug, metric thread

Screw plug, metric thread

Type 168 MS M25 + O
Item no. 2090656
EAN 4012197456122
Show all variants
Item no. / Type
Thread

Smallest selling unit: 50 piece

piece

Description

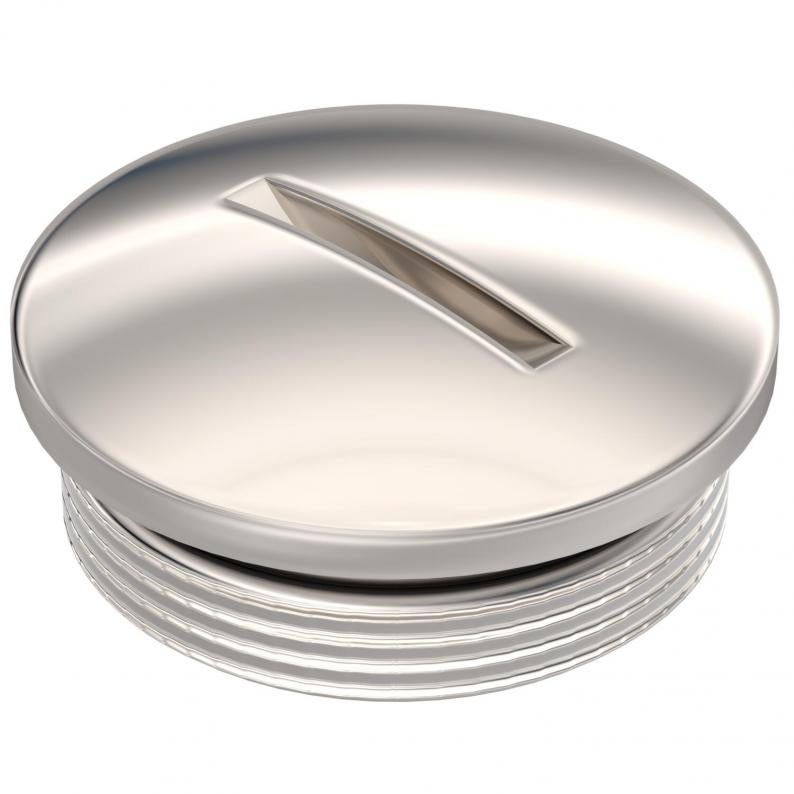

Metal screw plug with integrated sealing ring To close unused threaded openings, e.g. in housings or junction and branch boxes. With metric thread to DIN EN 60423 or ISO 68. Protection class IP 68 (5 bar/1 h).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread metric
  • Protection rating IP 68
  • Packaging without plastic
  • CO₂ footprint (PCF)

Technical data

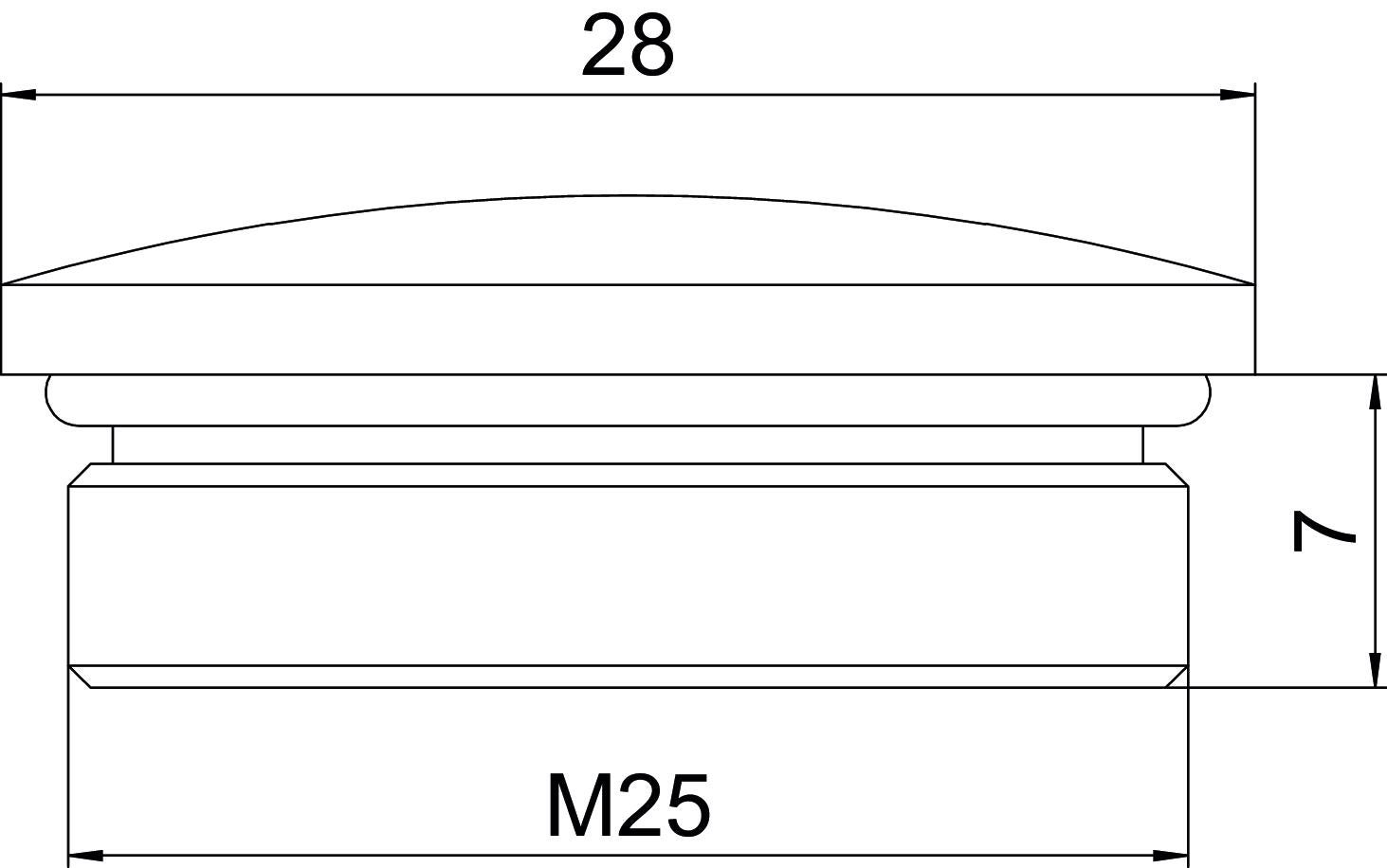

Dimensions

Length28 mm
Width28 mm
Height11 mm
Dimension L7 mm
Dimension D28 mm

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Protection ratingIP68
ThreadM25 x 1,5
Thread typeMetric
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,5 mm
Nominal thread size metric/PG25
DimensionØ28x11
SurfaceNickel-plated
MaterialBrass
Product seriesThreaded connection accessories

Environmental Data

0,0017 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0017 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0017 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (1)

Variants

Thread
168 MS M12 + O
Item no.
2090650
Thread
M12 x 1,5
168 MS M16 + O
Item no.
2090652
Thread
M16 x 1,5
168 MS M20 + O
Item no.
2090654
Thread
M20 x 1,5
168 MS M25 + O
Item no.
2090656
Thread
M25 x 1,5
168 MS M32 + O
Item no.
2090658
Thread
M32 x 1,5
168 MS M40 + O
Item no.
2090662
Thread
M40 x 1,5
168 MS M50 + O
Item no.
2090664
Thread
M50 x 1,5
168 MS M63 + O
Item no.
2090668
Thread
M63 x 1,5
