Screw-in spacer clip, universal
Type 2900 M6 54-60 G
Item no. 1383485
EAN 4012195121817
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 20 piece
20piece
piece
Description
With M6 thread.
Technical data

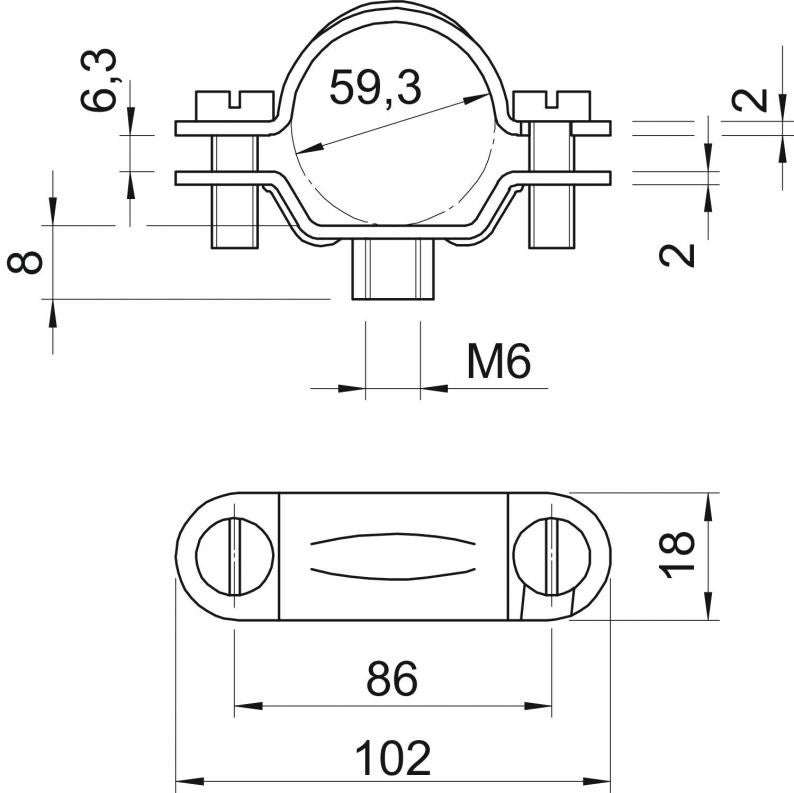

Dimensions
| Length | 102 mm |
|---|---|
| Width | 18 mm |
| Dimension L | 102 mm |
| Dimension A | 102 mm |
| Dimension B | 86 mm |
| Dimension d min. | 59,3 mm |
| Dimension H | 8 mm |
| Dimension b | 18 mm |
| Dimension x | 6,3 mm |
| Dimension t1 (mm) | 2 mm |
| Dimension t2 (mm) | 2 mm |
| Dimension D | 59,3 mm |
Technical data
| Material thickness | 2 mm |
|---|---|
| Hole size | M6 |
| Halogen-free | no |
| Size | Pg 48 |
| UV-resistant | yes |
| Plastic-covered | no |
| Bolt | M6 x 15 |
| Version for | Closed |
| Fastening type | Screw hole |
| ROHS-conformant | yes |
| Clamping range D, min. | 54 mm |
| Clamping range D, max. | 60 mm |
| Dimension | 54-60mm |
| Surface | Electrogalvanised |
| Material | Steel |
| Product series | 732 / 733 |
Environmental Data
0,1921 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1921 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1921 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Material thickness
Hole size
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
2900 M6 13-16 G
1,5
M6
13,5
16
Electrogalvanised
Steel
1383094
2900 M6 16-19 G
1,5
M6
16,5
19
Electrogalvanised
Steel
1383116
2900 M6 18-21 G
1,5
M6
18
21
Electrogalvanised
Steel
1383132
2900 M6 19-23 G
1,5
M6
19
23
Electrogalvanised
Steel
1383167
2900 M6 24-29 G
1,5
M6
24
29
Electrogalvanised
Steel
1383213
2900 M6 30-34 G
2
M6
30
34
Electrogalvanised
Steel
1383299
2900 M6 33-38 G
2
M6
33
38
Electrogalvanised
Steel
1383310
2900 M6 43-48 G
2
M6
43
48
Electrogalvanised
Steel
1383361
2900 M6 39-42 G
2
M6
39
42
Electrogalvanised
Steel
1383418
2900 M6 49-55 G
2
M6
49
55
Electrogalvanised
Steel
1383426
2900 M6 54-60 G
2
M6
54
60
Electrogalvanised
Steel
1383485
2900 M6 61-64 G
2
M6
61
64
Electrogalvanised
Steel
1383507
