Screw-in spacer clip, universal
Type 2072 M6 G
Item no. 1380427
EAN 4012195120971
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 25 piece
25piece
piece
Description
With M6 thread.
Universal clip with large tensioning area.
Universal clip with large tensioning area.
Technical data

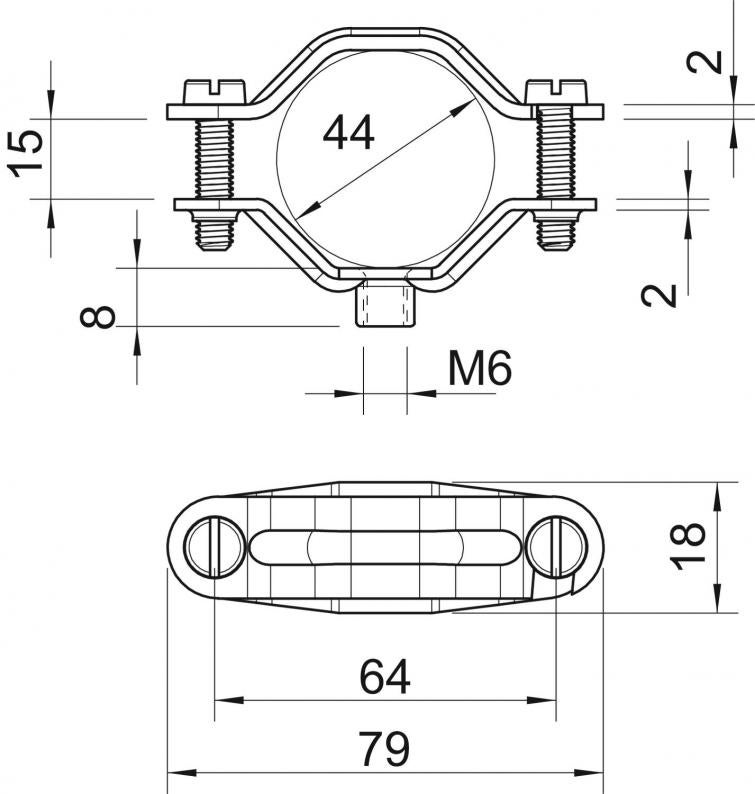

Dimensions
| Length | 79 mm |
|---|---|
| Width | 16 mm |
| Dimension L | 79 mm |
| Dimension A | 79 mm |
| Dimension B | 64 mm |
| Dimension d min. | 44 mm |
| Dimension H | 8 mm |
| Dimension b | 18 mm |
| Dimension x | 15 mm |
| Dimension t1 (mm) | 2 mm |
| Dimension t2 (mm) | 2 mm |
| Dimension D | 44 mm |
Technical data
| Material thickness | 2 mm |
|---|---|
| Hole size | M6 |
| Halogen-free | no |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Bolt | M5 x 22 |
| Version for | Closed |
| Fastening type | Screw hole |
| ROHS-conformant | yes |
| Clamping range D, min. | 30 mm |
| Clamping range D, max. | 44 mm |
| Dimension | 30-44mm |
| Surface | Electrogalvanised |
| Material | Steel |
| Product series | 732 / 733 |
Environmental Data
0,1414 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1414 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1414 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Material thickness
Hole size
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
2070 M6 G
1,5
M6
12
20
Electrogalvanised
Steel
1380028
2071 M6 G
1,5
M6
20
30
Electrogalvanised
Steel
1380222
2072 M6 G
2
M6
30
44
Electrogalvanised
Steel
1380427
2073 M6 G
2
M6
44
60
Electrogalvanised
Steel
1380729
Material thickness
Clamping range D, min.
Clamping range D, max.
2070 M6 G
Item no.
1380028
Material thickness
1,5
Hole size
M6
Clamping range D, min.
12
Clamping range D, max.
20
Surface
Electrogalvanised
Material
Steel
2071 M6 G
Item no.
1380222
Material thickness
1,5
Hole size
M6
Clamping range D, min.
20
Clamping range D, max.
30
Surface
Electrogalvanised
Material
Steel
2072 M6 G
Item no.
1380427
Material thickness
2
Hole size
M6
Clamping range D, min.
30
Clamping range D, max.
44
Surface
Electrogalvanised
Material
Steel
2073 M6 G
Item no.
1380729
Material thickness
2
Hole size
M6
Clamping range D, min.
44
Clamping range D, max.
60
Surface
Electrogalvanised
Material
Steel
