Screw-in spacer clip, universal

Screw-in spacer clip, universal

Type 2900 M6 30-34 G
Item no. 1383299
EAN 4012195121633
Show all variants
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.

Smallest selling unit: 50 piece

piece

Description

With M6 thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

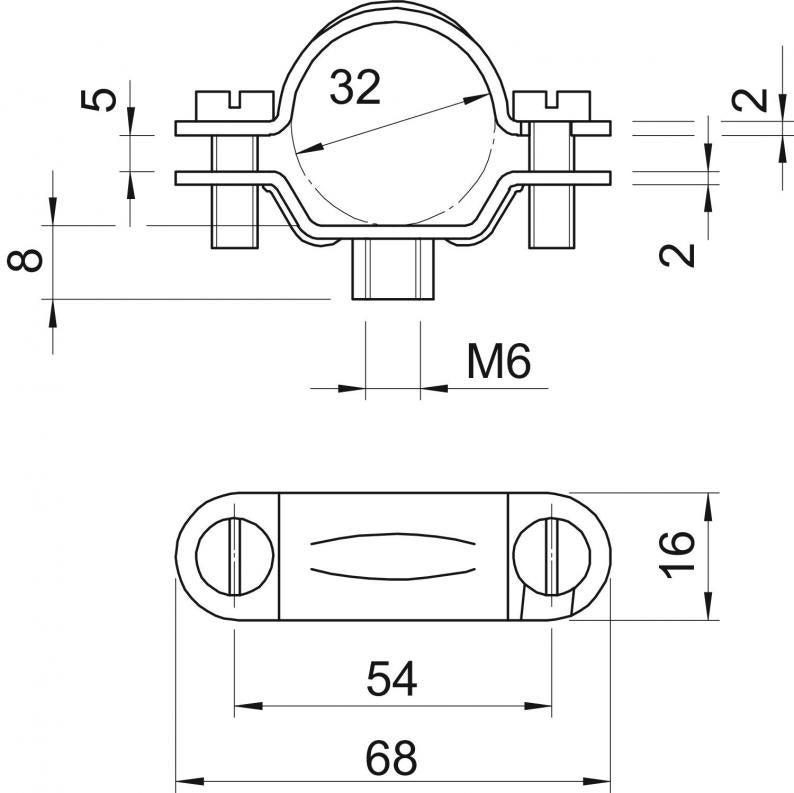

Dimensions

Length68 mm
Width16 mm
Dimension A68 mm
Dimension B54 mm
Dimension H8 mm
Dimension b16 mm
Dimension x5 mm
Dimension t1 (mm)2 mm
Dimension t2 (mm)2 mm
Dimension D32 mm

Technical data

Material thickness2 mm
Hole sizeM6
Halogen-freeno
SizeM32
UV-resistantyes
Plastic-coveredno
BoltM5 x 14
Version forClosed
Fastening typeScrew hole
ROHS-conformantyes
Clamping range D, min.30 mm
Clamping range D, max.34 mm
Dimension30-34mm
SurfaceElectrogalvanised
MaterialSteel
Product series732 / 733

Environmental Data

0,1337 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1337 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1337 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Material thickness
Clamping range D, min.
Clamping range D, max.
2900 M6 13-16 G
Item no.
1383094
Material thickness
1,5
Hole size
M6
Clamping range D, min.
13,5
Clamping range D, max.
16
Surface
Electrogalvanised
Material
Steel
2900 M6 16-19 G
Item no.
1383116
Material thickness
1,5
Hole size
M6
Clamping range D, min.
16,5
Clamping range D, max.
19
Surface
Electrogalvanised
Material
Steel
2900 M6 18-21 G
Item no.
1383132
Material thickness
1,5
Hole size
M6
Clamping range D, min.
18
Clamping range D, max.
21
Surface
Electrogalvanised
Material
Steel
2900 M6 19-23 G
Item no.
1383167
Material thickness
1,5
Hole size
M6
Clamping range D, min.
19
Clamping range D, max.
23
Surface
Electrogalvanised
Material
Steel
2900 M6 24-29 G
Item no.
1383213
Material thickness
1,5
Hole size
M6
Clamping range D, min.
24
Clamping range D, max.
29
Surface
Electrogalvanised
Material
Steel
2900 M6 30-34 G
Item no.
1383299
Material thickness
2
Hole size
M6
Clamping range D, min.
30
Clamping range D, max.
34
Surface
Electrogalvanised
Material
Steel
2900 M6 33-38 G
Item no.
1383310
Material thickness
2
Hole size
M6
Clamping range D, min.
33
Clamping range D, max.
38
Surface
Electrogalvanised
Material
Steel
2900 M6 43-48 G
Item no.
1383361
Material thickness
2
Hole size
M6
Clamping range D, min.
43
Clamping range D, max.
48
Surface
Electrogalvanised
Material
Steel
2900 M6 39-42 G
Item no.
1383418
Material thickness
2
Hole size
M6
Clamping range D, min.
39
Clamping range D, max.
42
Surface
Electrogalvanised
Material
Steel
2900 M6 49-55 G
Item no.
1383426
Material thickness
2
Hole size
M6
Clamping range D, min.
49
Clamping range D, max.
55
Surface
Electrogalvanised
Material
Steel
2900 M6 54-60 G
Item no.
1383485
Material thickness
2
Hole size
M6
Clamping range D, min.
54
Clamping range D, max.
60
Surface
Electrogalvanised
Material
Steel
2900 M6 61-64 G
Item no.
1383507
Material thickness
2
Hole size
M6
Clamping range D, min.
61
Clamping range D, max.
64
Surface
Electrogalvanised
Material
Steel
