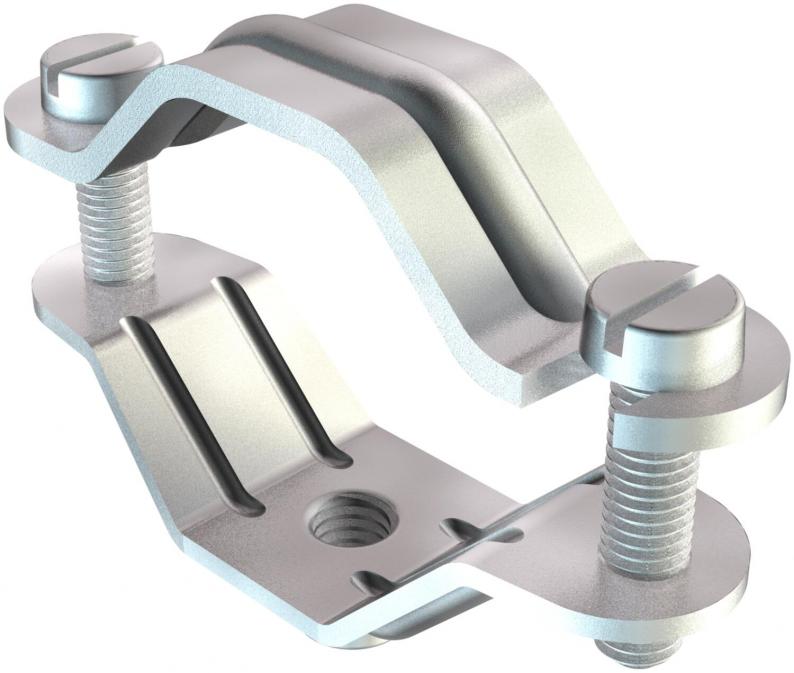

Screw-in spacer clip, universal
Type 2070 M6 G
|Item no. 1380028
|EAN 4012195120735
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 50 piece
50piece
piece
Description
With M6 thread.
Universal clip with large tensioning area.
Universal clip with large tensioning area.
Technical data

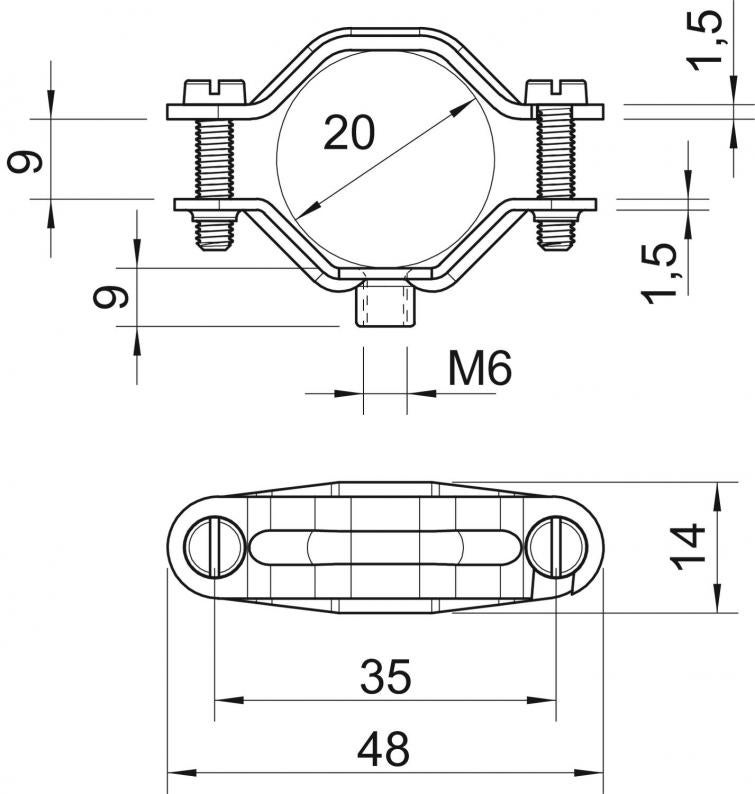

Dimensions
| Length | 48 mm |
|---|---|
| Width | 14 mm |
| Dimension L | 48 mm |
| Dimension A | 48 mm |
| Dimension B | 35 mm |
| Dimension d min. | 20 mm |
| Dimension H | 9 mm |
| Dimension b | 14 mm |
| Dimension x | 9 mm |
| Dimension t1 (mm) | 1,5 mm |
| Dimension t2 (mm) | 1,5 mm |
| Dimension D | 20 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Hole size | M6 |
| Halogen-free | no |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Bolt | M5 x 16 |
| Version for | Closed |
| Fastening type | Screw hole |
| ROHS-conformant | yes |
| Clamping range D, min. | 12 mm |
| Clamping range D, max. | 20 mm |
| Dimension | 12-20mm |
| Surface | Electrogalvanised |
| Material | Steel |
| Product series | 732 / 733 |
Environmental Data
0,0621 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0621 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0621 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Material thickness
Hole size
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
2070 M6 G
1,5
M6
12
20
Electrogalvanised
Steel
1380028
2071 M6 G
1,5
M6
20
30
Electrogalvanised
Steel
1380222
2072 M6 G
2
M6
30
44
Electrogalvanised
Steel
1380427
2073 M6 G
2
M6
44
60
Electrogalvanised
Steel
1380729
Material thickness
Clamping range D, min.
Clamping range D, max.
2070 M6 G
Item no.
1380028
Material thickness
1,5
Hole size
M6
Clamping range D, min.
12
Clamping range D, max.
20
Surface
Electrogalvanised
Material
Steel
2071 M6 G
Item no.
1380222
Material thickness
1,5
Hole size
M6
Clamping range D, min.
20
Clamping range D, max.
30
Surface
Electrogalvanised
Material
Steel
2072 M6 G
Item no.
1380427
Material thickness
2
Hole size
M6
Clamping range D, min.
30
Clamping range D, max.
44
Surface
Electrogalvanised
Material
Steel
2073 M6 G
Item no.
1380729
Material thickness
2
Hole size
M6
Clamping range D, min.
44
Clamping range D, max.
60
Surface
Electrogalvanised
Material
Steel
