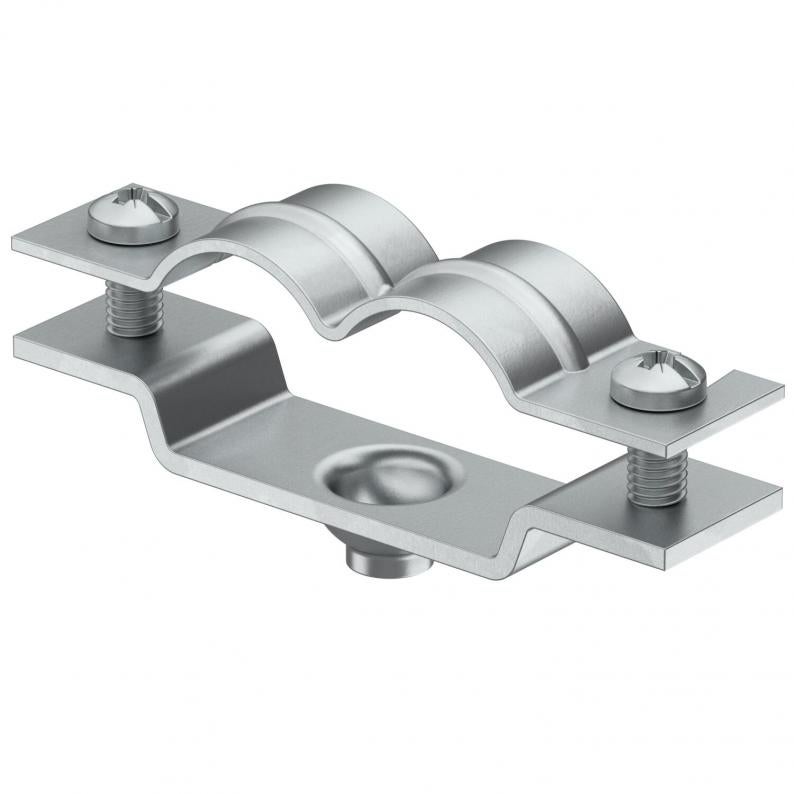

Screw-in spacer clip 705, double
Type 705 D M6
|Item no. 1371207
|EAN 4012195119418
Item no. / Type
1371207 / 705 D M6
Material thickness
1,25 mm
Hole size
M6
Clamping range D, min.
13 mm
Clamping range D, max.
20 mm
Surface
Electrogalvanised
Material
Steel
Smallest selling unit: 50 piece
50piece
piece
Description
With M6 thread.
Technical data
Technical data
| Material thickness | 1,25 mm |
|---|---|
| Hole size | M6 |
| Halogen-free | no |
| UV-resistant | yes |
| Plastic-covered | no |
| Bolt | M5 x 14 |
| Version for | Closed |
| Fastening type | Screw hole |
| ROHS-conformant | yes |
| Clamping range D, min. | 13 mm |
| Clamping range D, max. | 20 mm |
| Dimension | 13-20mm |
| Surface | Electrogalvanised |
| Material | Steel |
| Product series | 732 / 733 |

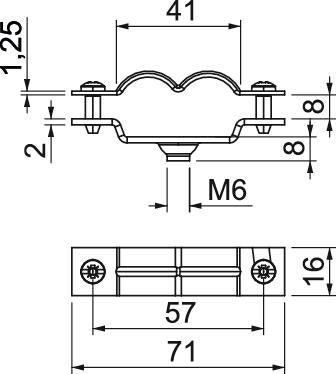

Dimensions
| Dimension A | 71 mm |
|---|---|
| Dimension B | 57 mm |
| Dimension d min. | 20 mm |
| Dimension m (mm) | 20 |
| Dimension D | 20 mm |
Environmental Data
0,0829 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0829 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0829 kg CO₂e |
| Determination date of CO2 value | 2025-05-27T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
