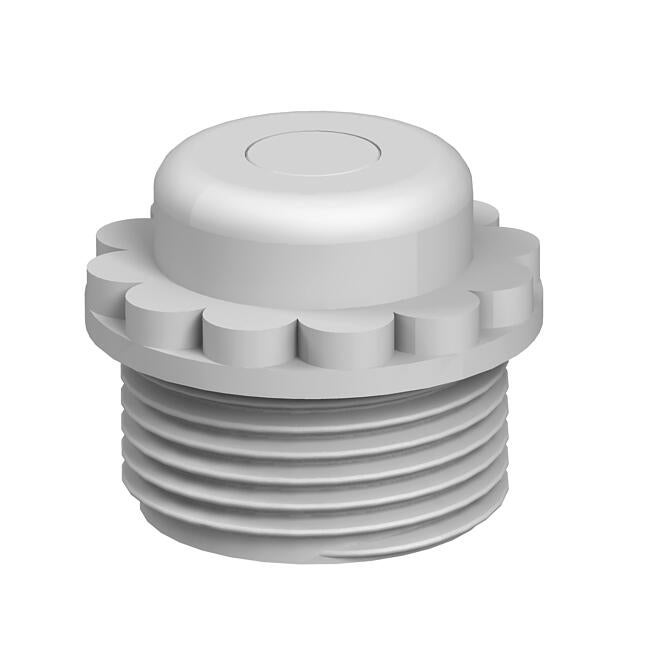

Screw-in nipple, metric thread, with perforation membrane

Screw-in nipple, metric thread, with perforation membrane

Type 90 M32 GE
Item no. 2032386
EAN 4012195481690
Show all variants
Item no. / Type
Size

Smallest selling unit: 25 piece

piece

Description

With perforation membranes, the opening D is pre-marked, but closed.
Grip seal to screw into metric thread to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Halogen-freeyes
Protection ratingIP54
SizeM32
WAF34
ROHS-conformantyes
Thread length14 mm
DimensionM32
MaterialPolyethylene
ColourLight grey; RAL 7035
Product seriesPlug-in seals

Dimensions

Dimension L114 mm
Dimension L28 mm
Dimension E39 mm
Dimension D13 mm

Environmental Data

0,0214 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0214 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0214 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Size
90 M12 GE
Item no.
2032378
Size
M12
90 M16 GE
Item no.
2032380
Size
M16
90 M20 GE
Item no.
2032382
Size
M20
90 M25 GE
Item no.
2032384
Size
M25
90 M32 GE
Item no.
2032386
Size
M32
90 M40 GE
Item no.
2032388
Size
M40
