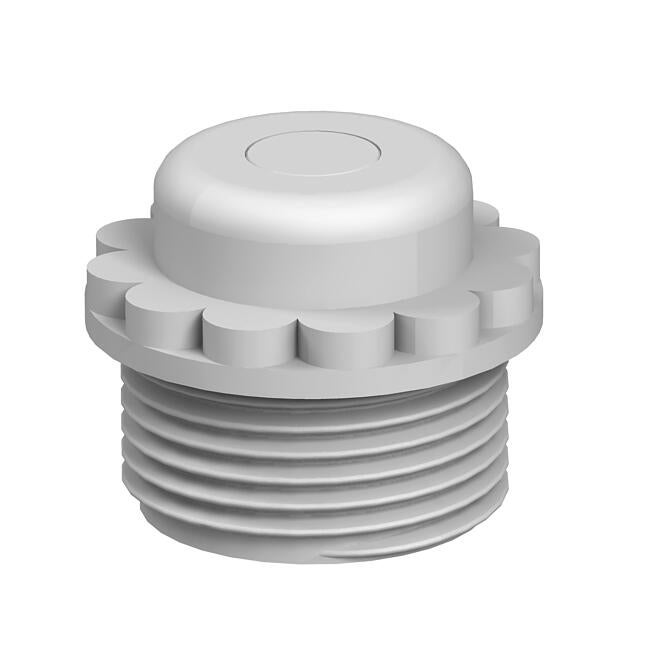

Screw-in nipple, metric thread, with perforation membrane

Screw-in nipple, metric thread, with perforation membrane

Type 90 M16 GE
Item no. 2032380
EAN 4012195481515
Show all variants
Item no. / Type
Size

Smallest selling unit: 100 piece

piece

Description

With perforation membranes, the opening D is pre-marked, but closed.
Grip seal to screw into metric thread to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Halogen-freeyes
Protection ratingIP54
SizeM16
WAF16
ROHS-conformantyes
Thread length8 mm
DimensionM16
MaterialPolyethylene
ColourLight grey; RAL 7035
Product seriesPlug-in seals

Dimensions

Dimension L18 mm
Dimension L26 mm
Dimension E20 mm
Dimension D5 mm

Environmental Data

0,0042 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0042 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0042 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Size
90 M12 GE
Item no.
2032378
Size
M12
90 M16 GE
Item no.
2032380
Size
M16
90 M20 GE
Item no.
2032382
Size
M20
90 M25 GE
Item no.
2032384
Size
M25
90 M32 GE
Item no.
2032386
Size
M32
90 M40 GE
Item no.
2032388
Size
M40
