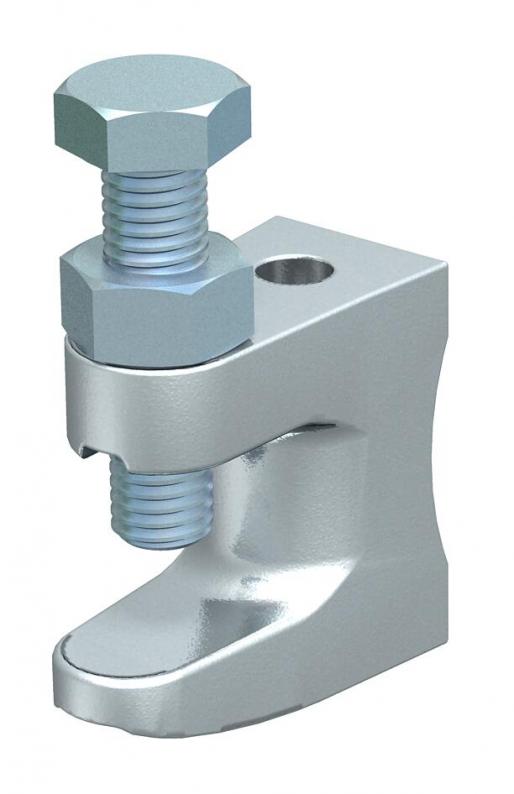

Screw-in beam clamp, with gland hole
Type FL 2 TG
|Item no. 1488023
|EAN 4012195150916
Item no. / Type
Length
Width
Height
Fastening hole
Thread
Breaking load
Flange thickness F min.
Flange thickness F max.
Smallest selling unit: 50 piece
50piece
piece
Description
With gland hole.
Max. tightening torque: 18 Nm
Max. tightening torque: 18 Nm
Technical data

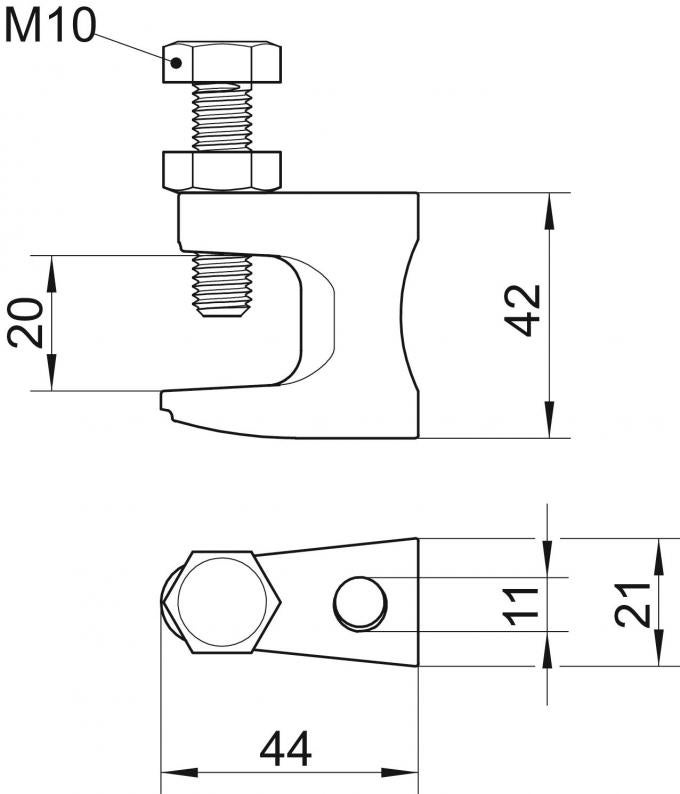

Dimensions
| Length | 44 mm |
|---|---|
| Width | 21 mm |
| Height | 42 mm |
| Dimension L | 44 mm |
| Dimension B | 21 mm |
| Dimension H | 42 mm |
| Dimension F | 20 mm |
| Dimension G (mm) | M10 |
| Dimension D | 11 mm |
Technical data
| Fastening hole | 11 mm |
|---|---|
| Thread metric | 10 |
| Thread | M10 |
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load | 2,5 kN |
| Max. Tightening torque | 18 Nm |
| ROHS-conformant | yes |
| Fastening type | Bolts |
| Connection type/component | Hole |
| Flange thickness F min. | 0 mm |
| Flange thickness F max. | 20 mm |
| Dimension | 0-19mm |
| Material | Cast iron |
| Product series | Support clamp |
