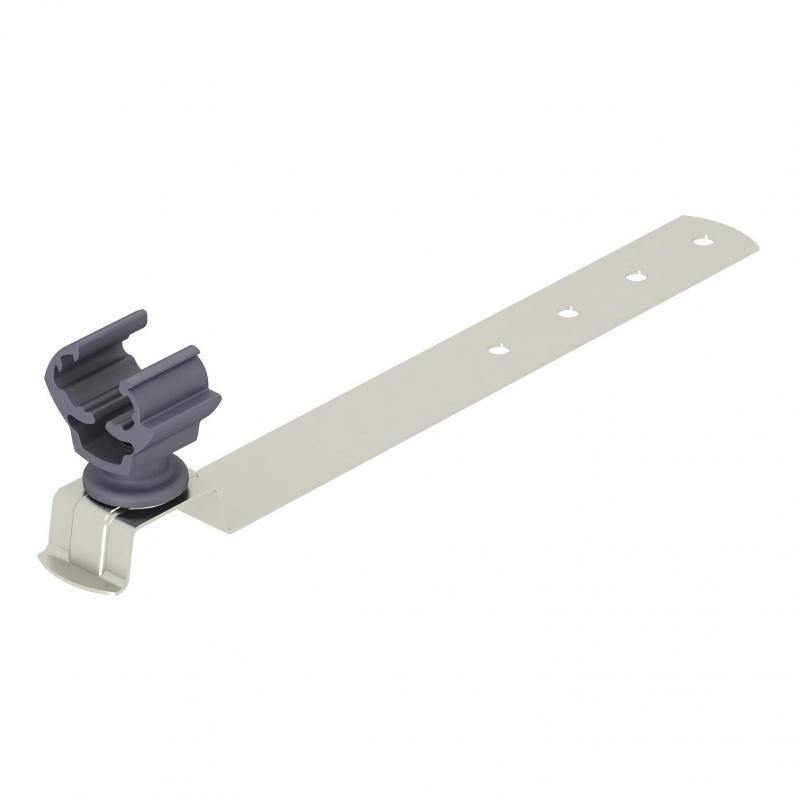

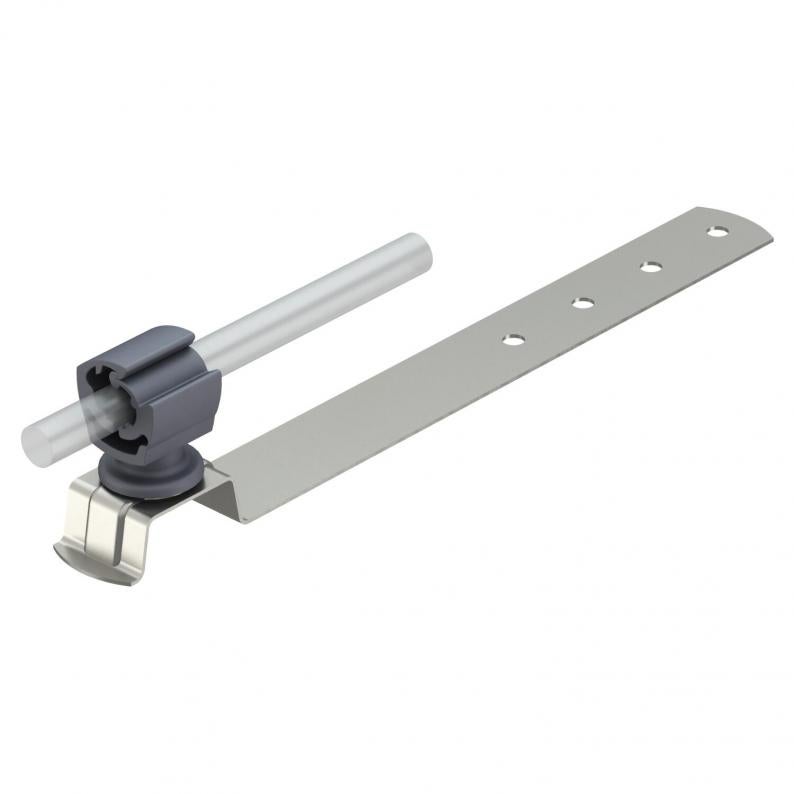

Roof conductor holder for tiled roofs, Rd 8−10

Roof conductor holder for tiled roofs, Rd 8−10

Type 157 FK-VA 230
|
Item no. 5215544
|
EAN 4012195902591
Show all variants
Item no. / Type
Length
Fit

Smallest selling unit: 20 piece

piece

Description

• Conductor holder of polyamide
• Including drill hole in bottom section for quick installation
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length230 mm
Width25 mm
Height40 mm
Dimension L230 mm

Technical data

Mounting height40 mm
Conductor diameter, min.8
Conductor diameter, max.10
Conductor fastening typeWith clamp clip
ApplicationRoof surface
Mounting typeScrew-on
ROHS-conformantyes
FitRd 8-10 mm
Dimension8-10 mm
MaterialStainless steel 1.4301

Environmental Data

0,3 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,3 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,3 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
157 FK-VA 230
Item no.
5215544
Length
230
Fit
Rd 8-10
157 FK-VA 280
Item no.
5215587
Length
280
Fit
Rd 8-10
157 FK-VA 410
Item no.
5215609
Length
410
Fit
Rd 8-10
