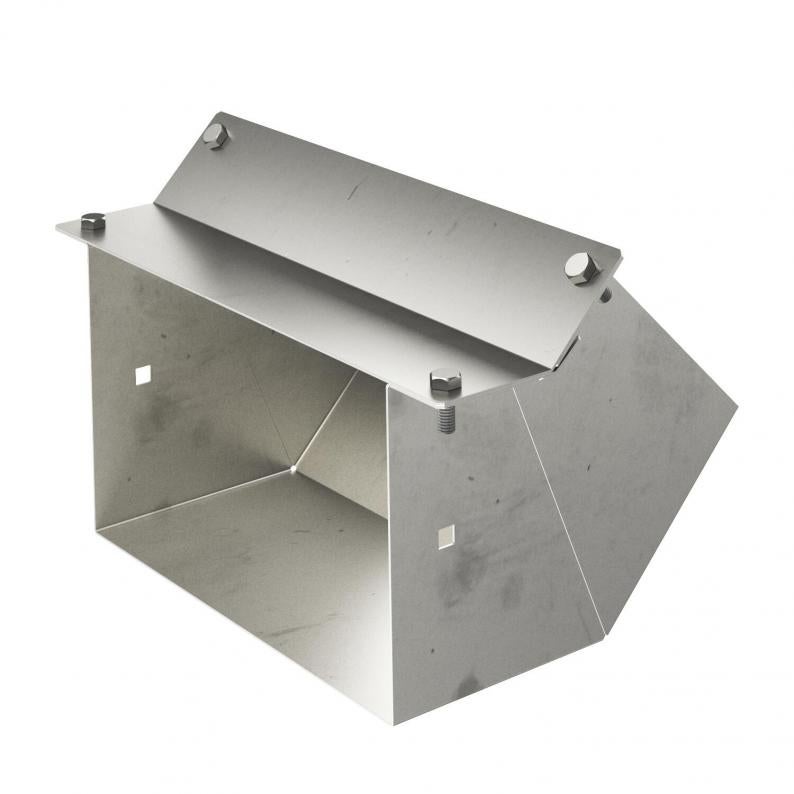

Rising level, for installation duct PLMR
Type PLMR LR 1220 A2
|Item no. 7218202
|EAN 4012197422806
Item no. / Type
7218202 / PLMR LR 1220 A2
Colour
stainless steel
Smallest selling unit: 1 piece
1piece
piece
Description
Level, rising version. Suitable for the installation duct PLMR. To overcome obstacles in outdoor areas. Screws and nuts included.
Technical data
Dimensions
| Length | 171 mm |
|---|---|
| Width | 260 mm |
| Height | 158 mm |
Technical data
| Usable cross-section | 18500 mm² |
|---|---|
| Angle of the bend | 45 ° |
| Cover fastening | Screw |
| Number of flammable sides | 4 |
| Dimension | 171x158x260 |
| Surface | Bright |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Product series | PYROLINE® PLMR |
Environmental Data
6,4961 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 6,4961 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 6,4961 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
