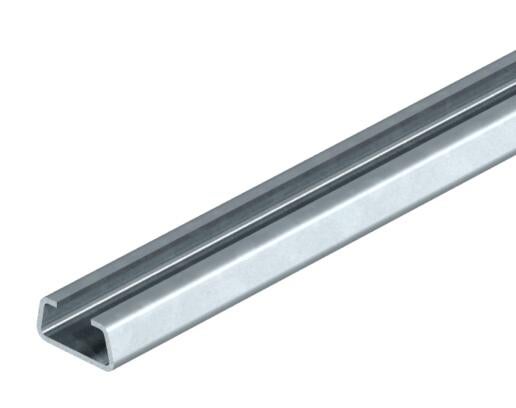

Profile rail CL2512, slot 11 mm, A2, unperforated

Profile rail CL2512, slot 11 mm, A2, unperforated

Type AL2512UP2000A2
|
Item no. 1117068
|
EAN 4012195046639
Show all variants
Item no. / Type
Length
Width
Height
Material thickness
Material

Smallest selling unit: 2 m

m

Description

Light-duty C profile rail for cable routing, in conjunction with series clips or clamp clips with N foot. Can also be used in building of control cabinets.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11 mm for C profile
  • Clamp clip for C profile rail, slot width 11–12 mm
  • CO₂ footprint (PCF)

Technical data

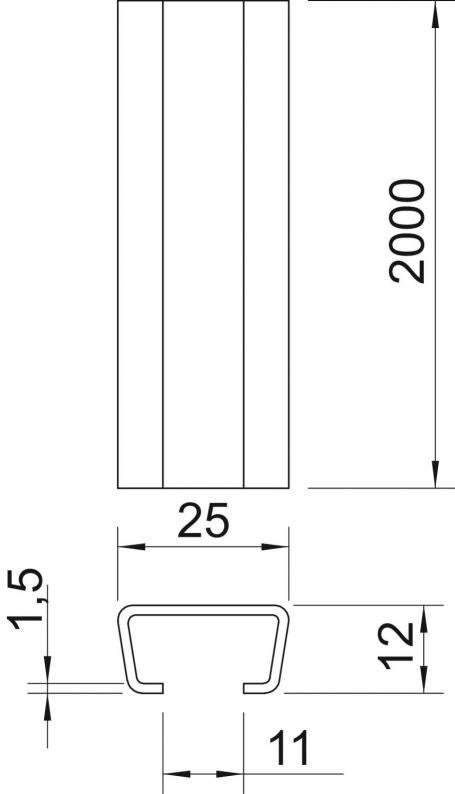

Dimensions

Length2000 mm
Width25 mm
Height12 mm
Dimension L2000 mm

Technical data

Slot width11 mm
Material thickness1,5 mm
Static value A0,77 cm²
Static value ly0,14 cm⁴
Static value lz0,59 cm⁴
Static value Wy0,19 cm³
Static value Wz0,47 cm³
Profile shapeC profile
Type of perforationWithout
With perforationno
With toothingno
Bundle20 m
Version forSingle profile
Dimension2000x25x12
MaterialStainless steel 1.4301

Environmental Data

2,807 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate2,807 kg CO2e / 1 Meter
CO₂ Footprint (GWP)2,807 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (7)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Surface
Material
AL2512UP2000FT
Item no.
1117025
Length
2000
Width
25
Height
12
Material thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
AL2512UP2000FS
Item no.
1117033
Length
2000
Width
25
Height
12
Material thickness
1,5
Surface
Strip galvanised
Material
Steel
AL2512UP2000A2
Item no.
1117068
Length
2000
Width
25
Height
12
Material thickness
1,5
Material
Stainless steel 1.4301
