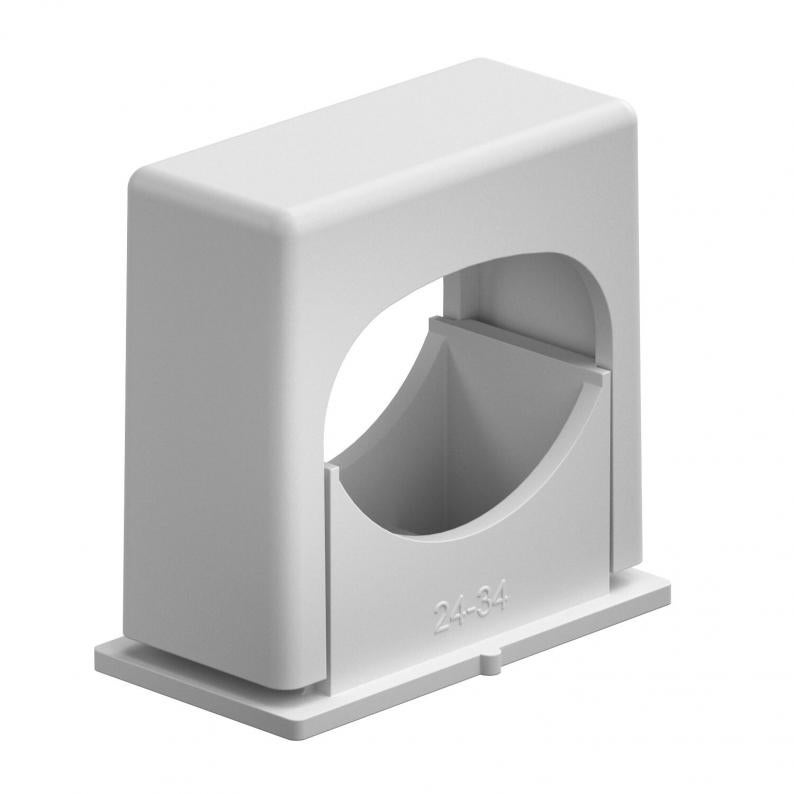

Pressure ISO clip 3052, single, light grey
Type 3052 LGR
|Item no. 2101068
|EAN 4012195195375
Item no. / Type
2101068 / 3052 LGR
Clamping range D, min.
24 mm
Clamping range D, max.
34 mm
Colour
Light grey; RAL 7035
Smallest selling unit: 25 piece
25piece
piece
Description
With adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
Technical data
Technical data
| Impact-resistant | yes |
|---|---|
| Halogen-free | yes |
| Expandable | no |
| Number of cables/pipes | 1 |
| Fastening type | Screw hole |
| ROHS-conformant | yes |
| Clamping range D, min. | 24 mm |
| Clamping range D, max. | 34 mm |
| Dimension | 24-34mm |
| Material | Polystyrene |
| Colour | Light grey; RAL 7035 |
| Product series | Fastening clip |
Dimensions
| Dimension d | 43 mm |
|---|---|
| Dimension b | 24 mm |
| Dimension a1 (mm) | 16 mm |
| Dimension b1 | 4,2 mm |
| Dimension a | 45 mm |
| Dimension c | 43 mm |
| Dimension e | 57 mm |
Environmental Data
0,0524 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0524 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0524 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
