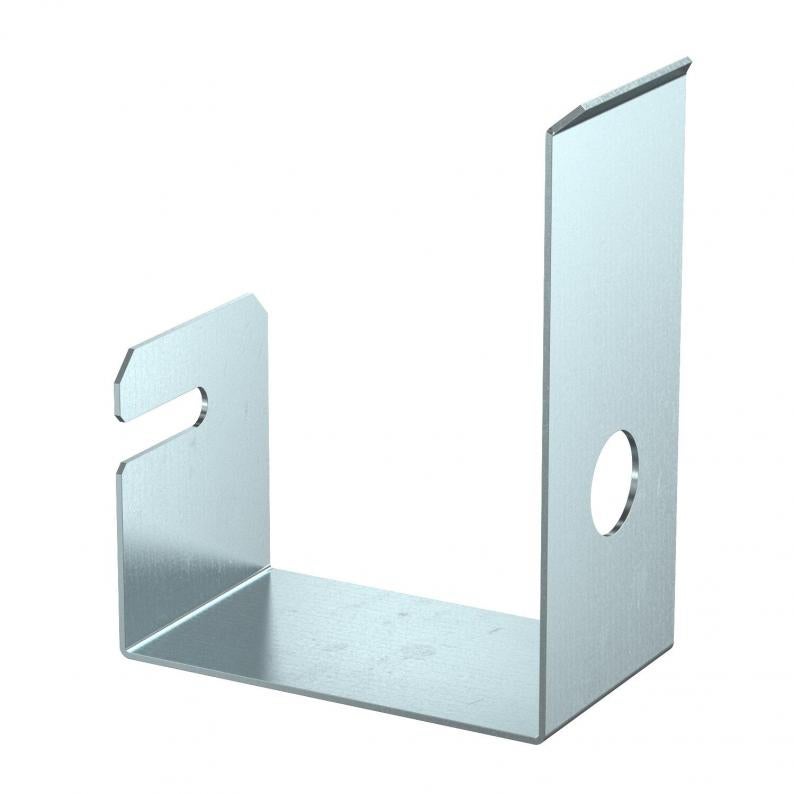

Pressure clip for wall mounting, duct height 120 mm
Type PLM WB 1220 FS
Item no. 7218156
EAN 4012197310530
Item no. / Type
7218156 / PLM WB 1220 FS
Smallest selling unit: 10 piece
10piece
piece
Description
Installation aid against cables falling out during wall mounting of the PLM D 1220 installation duct.
Technical data
Dimensions
| Dimension B | 60 mm |
|---|---|
| Dimension H | 132 mm |
| Dimension t | 102 mm |
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| Fastening type | Screw-on |
| ROHS-conformant | yes |
| Dimension | 102x60x132 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
0,615 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,615 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,615 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
