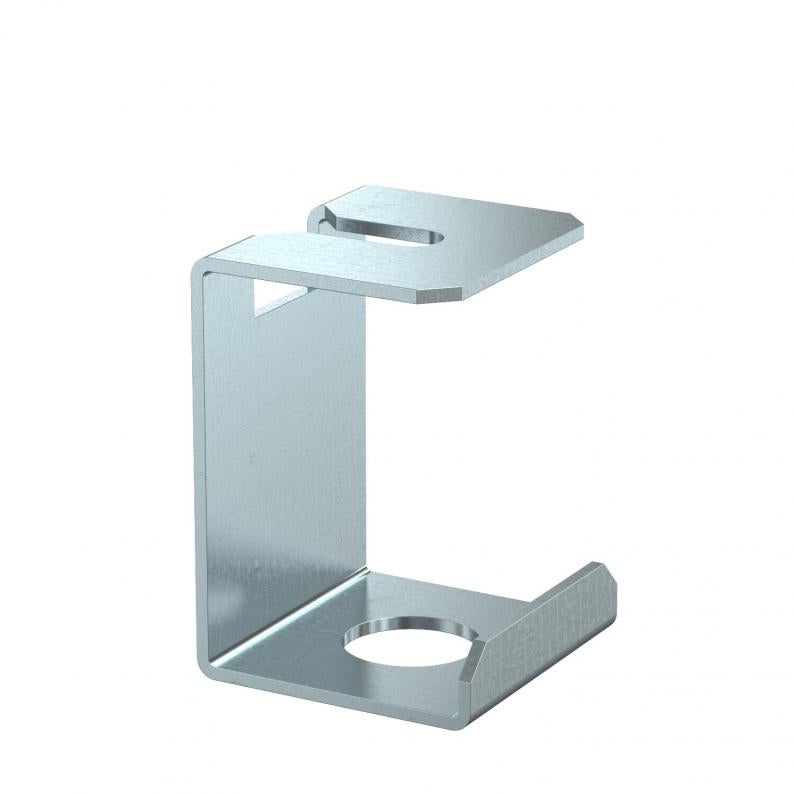

Pressure clip for ceiling mounting, duct height 80 mm
Type PLM CB 0810 FS
Item no. 7218148
EAN 4012197310455
Item no. / Type
7218148 / PLM CB 0810 FS
Smallest selling unit: 10 piece
10piece
piece
Description
Installation aid against cables falling out during ceiling mounting of the PLM D 0810 installation duct.
Technical data

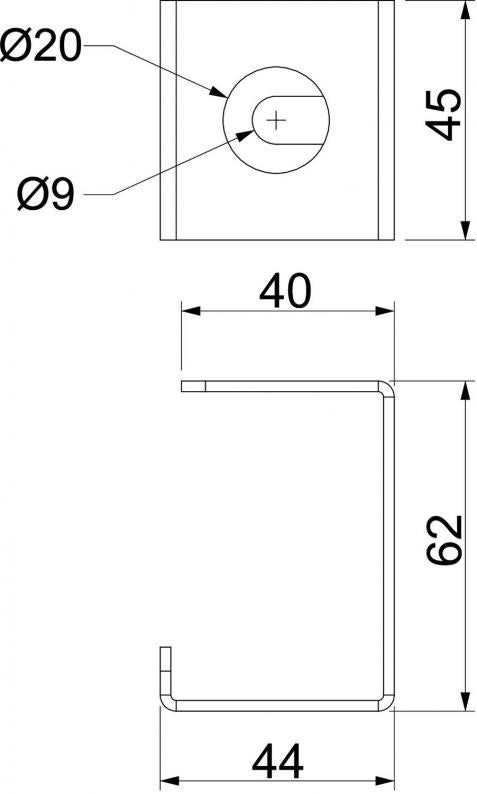

Dimensions
| Dimension B | 44 mm |
|---|---|
| Dimension H | 62 mm |
| Dimension b | 40 mm |
| Dimension t | 45 mm |
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| Fastening type | Screw-on |
| ROHS-conformant | yes |
| Dimension | 44x45x62 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
0,3218 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3218 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,3218 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
