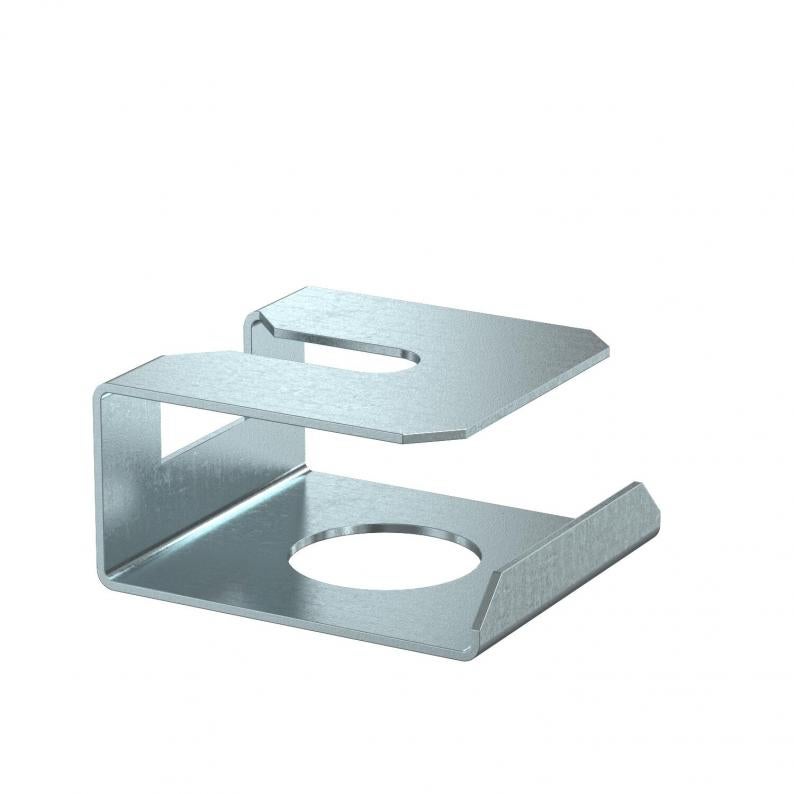

Pressure clip for ceiling mounting, duct height 40 mm
Type PLM CB 0410 FS
Item no. 7218146
EAN 4012197310431
Item no. / Type
7218146 / PLM CB 0410 FS
Smallest selling unit: 10 piece
10piece
piece
Description
Installation aid against cables falling out for ceiling mounting of the PLM D 0410 installation duct.
Technical data

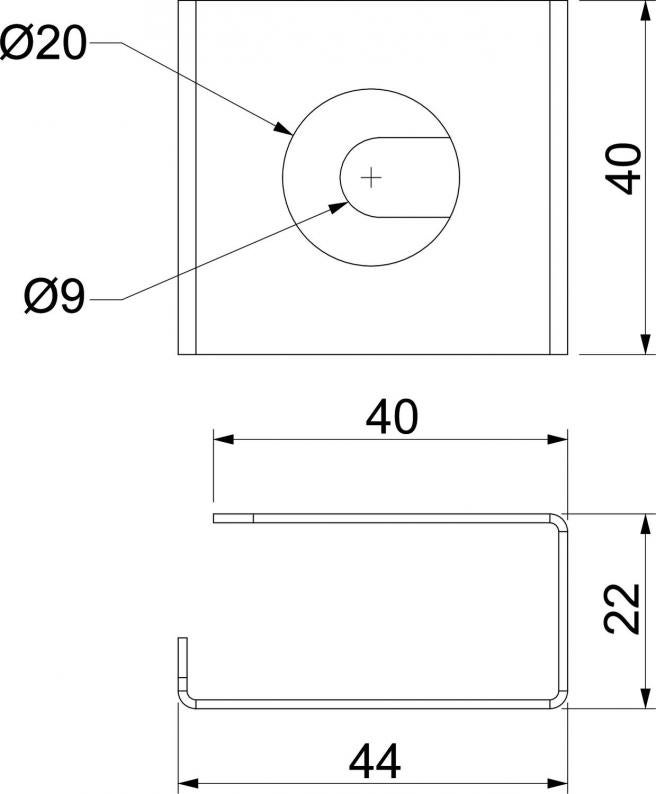

Dimensions
| Dimension B | 44 mm |
|---|---|
| Dimension H | 22 mm |
| Dimension b | 40 mm |
| Dimension t | 40 mm |
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| Fastening type | Screw-on |
| ROHS-conformant | yes |
| Dimension | 44x40x22 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
0,1208 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1208 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1208 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
