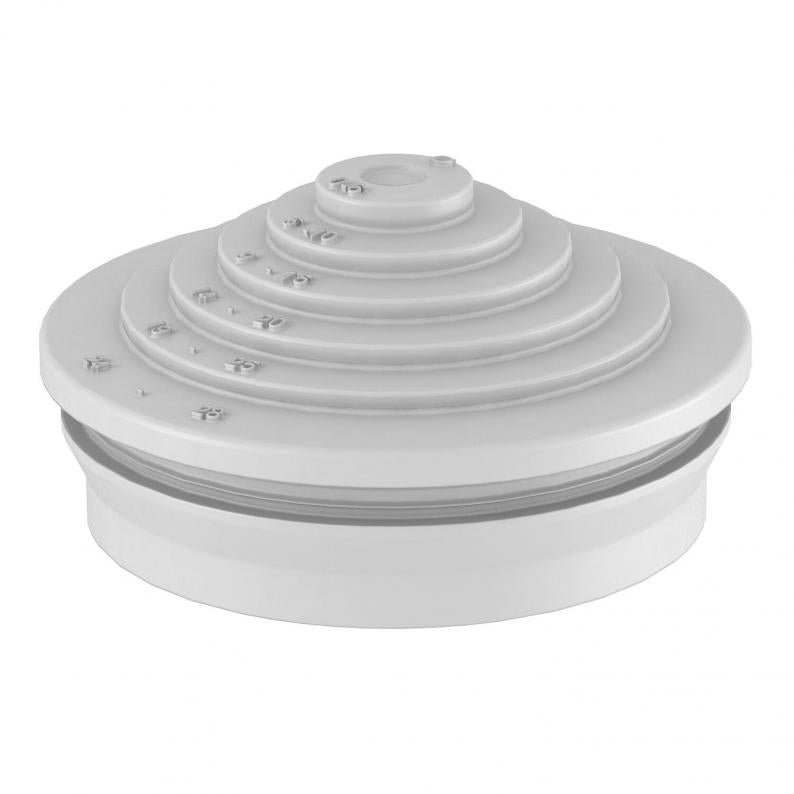

Plug-in seal EDVS, light grey

Plug-in seal EDVS, light grey

Type EDVS M32 LGR
Item no. 2012391
EAN 4012195105138
Show all variants
Item no. / Type
for diameter, min.
for diameter, max.
Size

Smallest selling unit: 50 piece

piece

Description

The push-in nipple can be cut back to suit the relevant cable diameter.
  • Indication of metric products
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 54
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

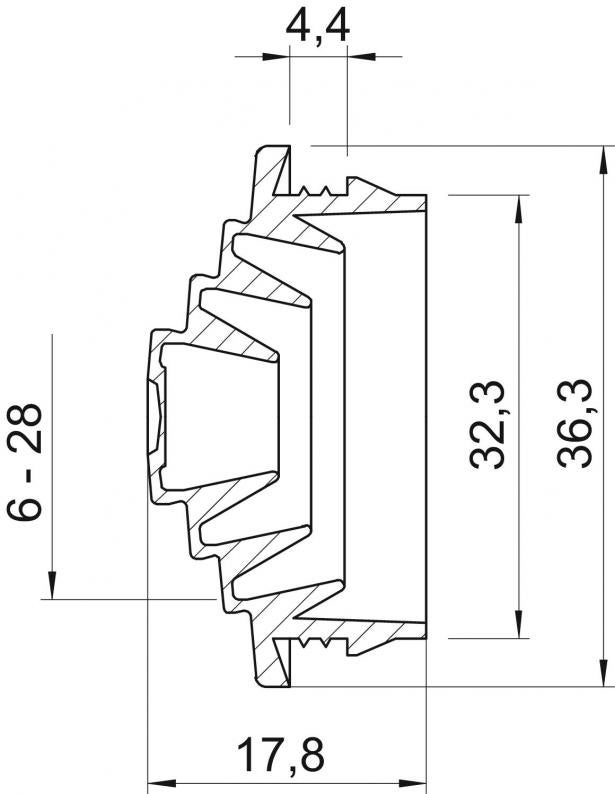

Dimensions

Dimension D136,3 mm
Dimension D232,3 mm
Dimension L17,8 mm
Dimension A4,4 mm
Dimension D36 mm
Dimension D515 mm
Dimension t4,4 mm
Dimension D410 mm

Technical data

for diameter, min.0 mm
for diameter, max.28 mm
Halogen-freeyes
Protection ratingIP54
SizeM32
for wall thickness, min.4,4 mm
for wall thickness, max.4,4 mm
Nominal diameter32 mm
Version forCuttable
ROHS-conformantyes
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
DimensionM32
MaterialEthylene vinyl acetate
ColourLight grey; RAL 7035
Product seriesPlug-in seals

Environmental Data

0,041 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,041 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,041 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
Tender specifications (1)

Variants

for diameter, max.
Size
EDVS M20 LGR
Item no.
2012375
for diameter, min.
0
for diameter, max.
17
Size
M20
Colour
Light grey; RAL 7035
EDVS M25 LGR
Item no.
2012383
for diameter, min.
0
for diameter, max.
22
Size
M25
Colour
Light grey; RAL 7035
EDVS M32 LGR
Item no.
2012391
for diameter, min.
0
for diameter, max.
28
Size
M32
Colour
Light grey; RAL 7035
