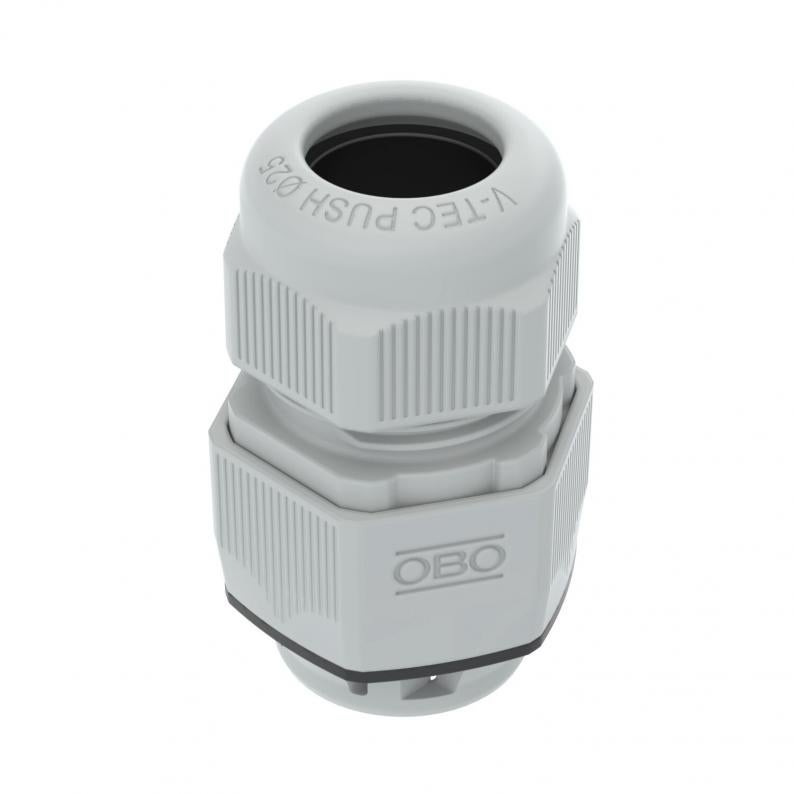

Plug-in cable gland V-TEC Push® M25

Type V-TEC PUSH M25

Item no. 2022092

EAN 4012197510084

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

Smallest selling unit: 25 piece

piece

Description

Cable gland V-TEC PUSH® with patented snap-in system and metal spring for use in, for example, junction boxes, housings or distributor cabinets in private and industrial applications. Single-sided plug-in, screwless fastening, no locknut required. Can be removed again with the enclosed dismantling tool. Suitable for wall thicknesses from 1–3 mm. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP66. Can be used between –20 °C and +65 °C.

Technical data

Impact-resistant	no
Halogen-free	yes
Fibre-glass reinforced	no
explosion-proof	no
Strain relief option	yes
Protection rating	IP66
For Ex zone	Without
Bend protection	no
With locknut	no
Sealing insert, multiple	no
Flat cable gland	no
Type of seal	Sealing ring
Splittable gland	no
For Ex zone gas	Without
For Ex zone dust	Without
for wall thickness, min.	1 mm
for wall thickness, max.	3 mm
Sealing area D, min.	9 mm
Sealing area D, max.	17 mm
WAF	32
Version for	Straight
Unstable torque	5 Nm
Permitted temperature range, min.	-20 °C
Permitted temperature range, max.	65 °C
Dimension	Ø25
Material	Polyamide
Colour	Light grey; RAL 7035
Connection method to the housing	Click fastening

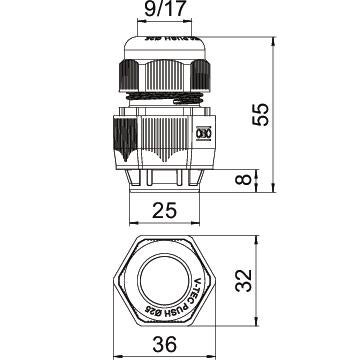

Dimensions

Dimension L min.	26 mm
Dimension L max.	35 mm
Dimension E	36 mm
