Plastic trunking cover, smooth

Plastic trunking cover, smooth

Type GK-OTGRW
|
Item no. 6278680
|
EAN 4012195666400
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

m

Description

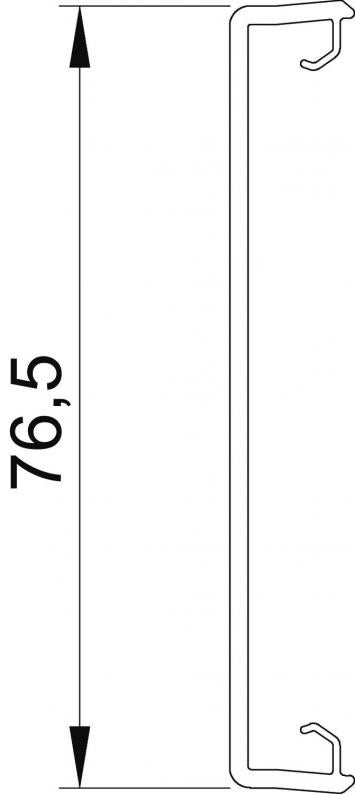

Smooth trunking cover, for closing device installation trunking with 76.5 mm system opening.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width76,5 mm
Height12 mm

Technical data

Protection ratingIP30
Cover mounting typeInternal
Protection rating IK codeIK08
Version forSmooth
ROHS-conformantyes
Permitted temperature range, min.-15 °C
Permitted temperature range, max.60 °C
Dimension80x2000mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno
Product seriesRapid 80®

Environmental Data

0,5366 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,5366 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,5366 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
GK-OTGSW
Item no.
6278684
Length
2000
Colour
Jet black; RAL 9005
GK-OTGRW
Item no.
6278680
Length
2000
Colour
Pure white; RAL 9010
GK-OTGCW
Item no.
6278681
Length
2000
Colour
Cream; RAL 9001
GK-OTGLGR
Item no.
6278682
Length
2000
Colour
Light grey; RAL 7035
GK-OTGGR
Item no.
6278686
Length
2000
Colour
Stone grey; RAL 7030
