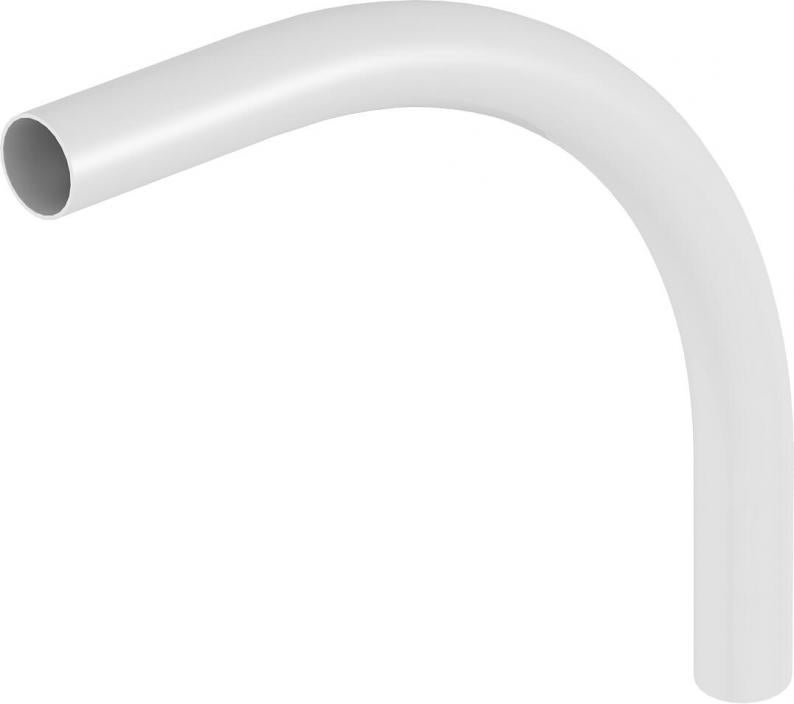

Pipe bend, plastic, halogen-free

Pipe bend, plastic, halogen-free

Type KBH25 LGR
Item no. 2047739
EAN 4012195623205
Show all variants
Item no. / Type
For nominal pipe diameter

Smallest selling unit: 25 piece

piece

Description

Accessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric

Technical data

Dimensions

Length206,5 mm
Dimension L206,5 mm
Dimension A59 mm
Dimension t1,7 mm
Dimension m (mm)M25
Dimension R122,5 mm
Dimension D25 mm

Technical data

Halogen-freeyes
Angle of the bend90 °
With sleeveno
Flexibleno
For nominal pipe diameter25 mm
Version forConnector
ROHS-conformantyes
DimensionØ25mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourLight grey; RAL 7035
Product seriesPlastic pipes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Product images (3)
Tender specifications (1)

Variants

For nominal pipe diameter
KBH16 LGR
Item no.
2047736
For nominal pipe diameter
16
KBH20 LGR
Item no.
2047738
For nominal pipe diameter
20
KBH25 LGR
Item no.
2047739
For nominal pipe diameter
25
KBH32 LGR
Item no.
2047740
For nominal pipe diameter
32
KBH40 LGR
Item no.
2047741
For nominal pipe diameter
40
KBH50 LGR
Item no.
2047742
For nominal pipe diameter
50
KBH63 LGR
Item no.
2047743
For nominal pipe diameter
63
