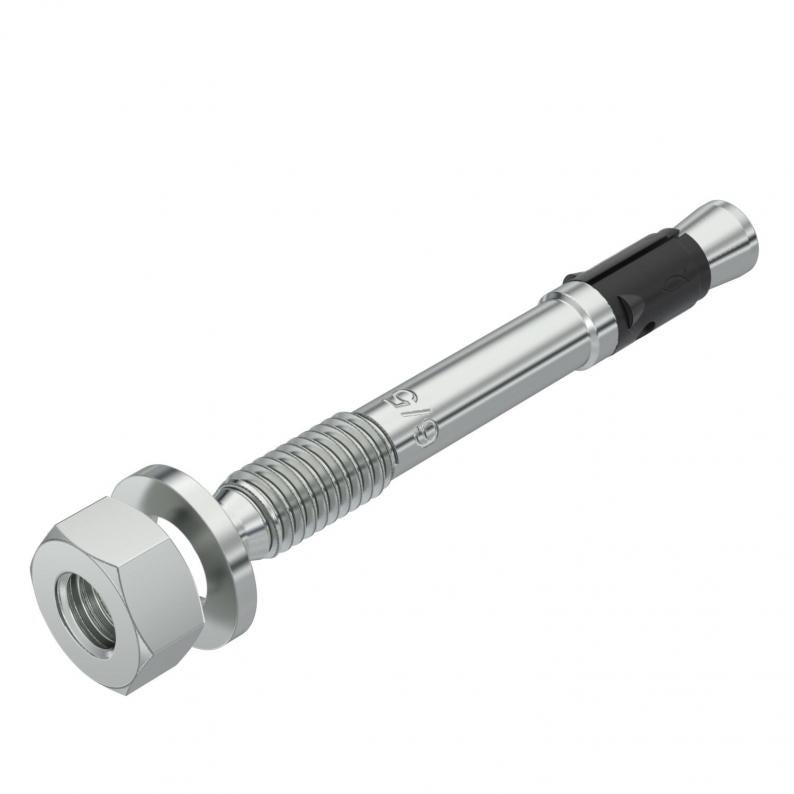

Nail tie with thread G

Type FNAII 6x30M6/5
Item no. 3499020
EAN 4012197507367

Description

Nail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

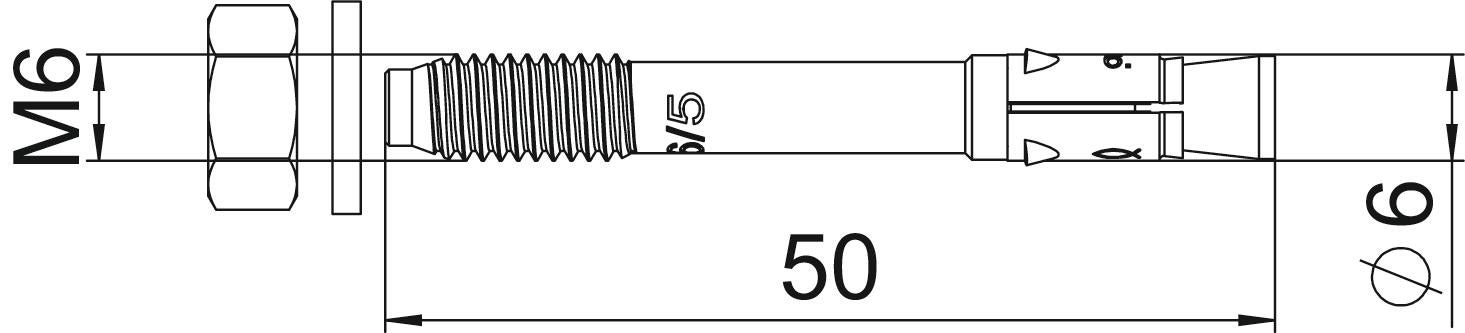

Dimensions

Length55 mm
Dimension L55 mm

Technical data

Thread metric6
ThreadM6
Self-drillingno
Approvals availableyes
Fastening unitMiscellaneous
Clamping strength10 mm
Version forLightning strike
ROHS-conformantyes
Drill hole diameter, min.6 mm
Drill hole depth45 mm
Dimension6x50
SurfaceElectrogalvanised
MaterialSteel
Colourzinc
Suitable for materialCalcareous sandstone, Concrete, Natural stone
Mounting type, anchor, tiePush-through mounting

Downloads

0 selected

Data sheet (1)
Declarations (4)
Certificates (1)
Product images (2)
Tender specifications (1)

Variants

FNAII 6x30M6/5A4
Item no.
3499024
Thread
M6
FNAII 6x30M6/5A5
Item no.
3499026
Thread
M6
FNAII 6x30M6/5
Item no.
3499020
Thread
M6
