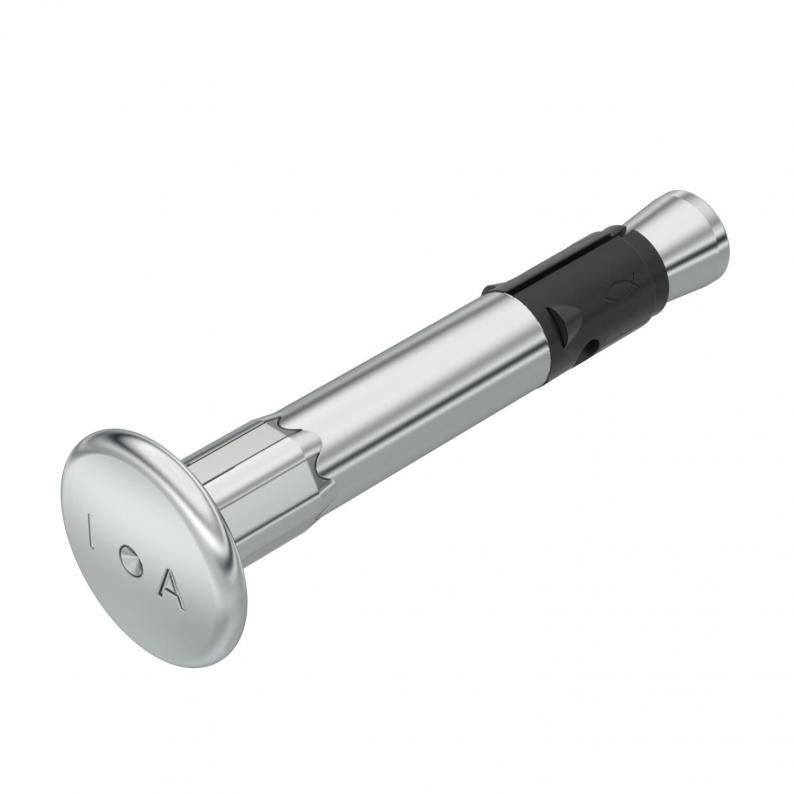

Nail tie with nail head G

Type FNAII 6x30/5
Item no. 3499010
EAN 4012197507336

Description

Nail tie with nail head for the anchoring of, for example, fire protection products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer or rotary drill When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

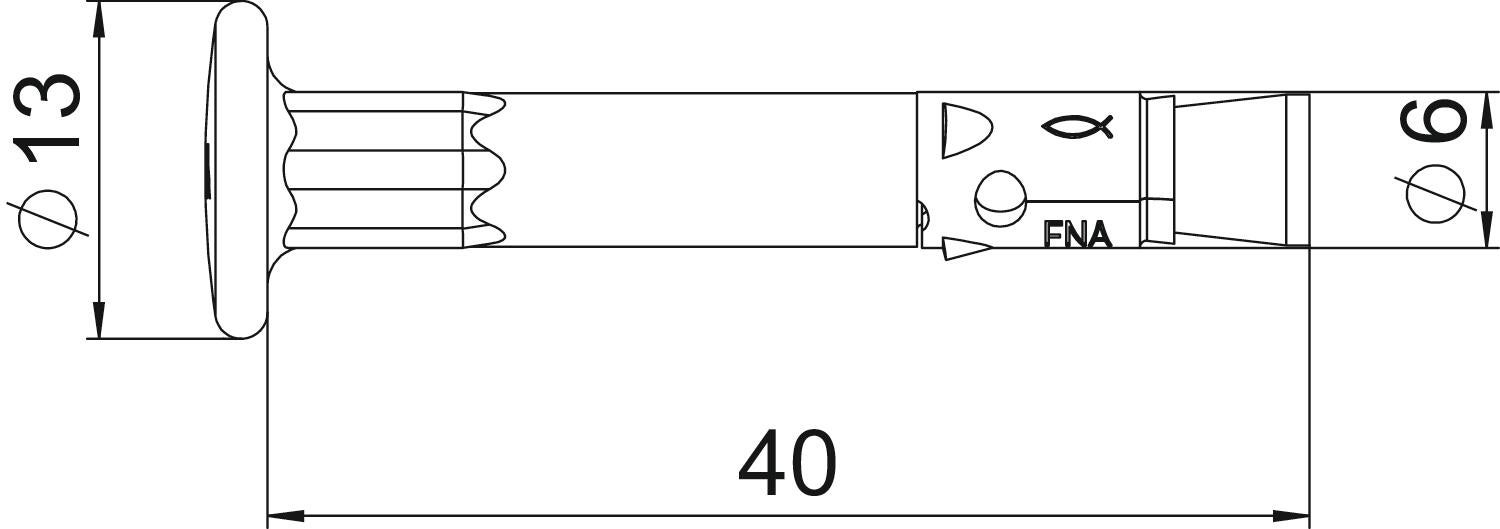

Dimensions

Length42,5 mm
Dimension L42,5 mm

Technical data

Self-drillingno
Approvals availableyes
Fastening unitMiscellaneous
Clamping strength5 mm
Version forLightning strike
ROHS-conformantyes
Drill hole diameter, min.6 mm
Drill hole depth45 mm
Dimension6x42,5
SurfaceElectrogalvanised
MaterialSteel
Colourzinc
Suitable for materialCalcareous sandstone, Concrete, Natural stone
Mounting type, anchor, tiePush-through mounting

Downloads

0 selected

Data sheet (1)
Declarations (4)
Certificates (1)
Product images (2)
Tender specifications (1)

Variants

FNAII 6x30/5A4
Item no.
3499014
FNAII 6x30/5A5
Item no.
3499016
FNAII 6x30/5
Item no.
3499010
