MWAG 12 A4 wall and support bracket

MWAG 12 A4 wall and support bracket

Type MWAG 12 11 A4
|
Item no. 6424410
|
EAN 4012197253912
Show all variants
Item no. / Type
Width
F in kN

Smallest selling unit: 1 piece

piece

Description

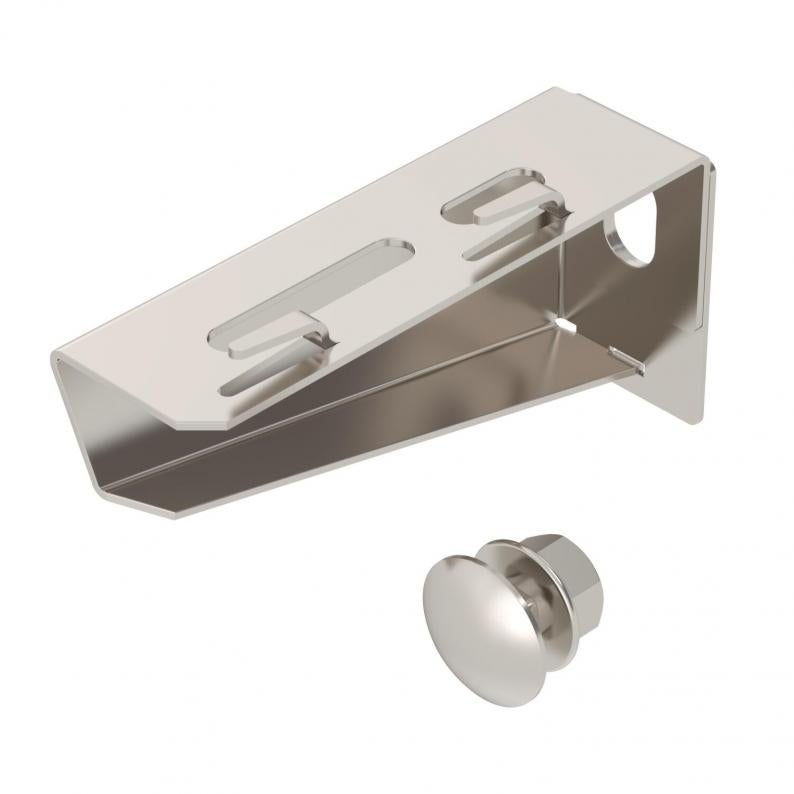

Light-duty wall and support bracket with edged design for screwless mesh cable tray fastening.

Including truss-head bolt M10 x 25 for fastening to

U supports.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wall and support brackets
  • U support
  • U support
  • U support
  • Easy mounting component
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

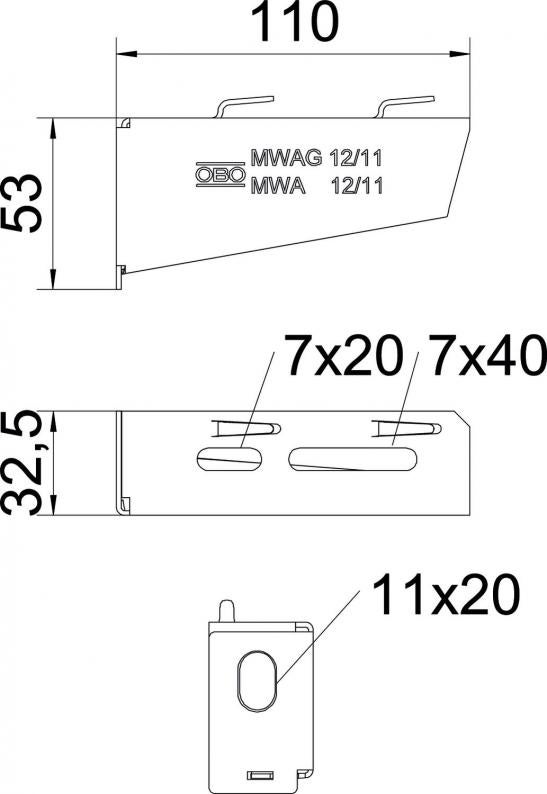

Dimensions

Width110 mm
Height53 mm
Dimension A32,5 mm
Dimension B110 mm
Dimension H53 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width min.100
Angle range, min.90 mm
Angle range, max.90 mm
Hole diameter11 mm
Version forWall and support bracket
F in kN1,2 kN
DimensionB110mm
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel

Environmental Data

1,0335 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate1,0335 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,0335 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
MWAG 12 11 A4
Item no.
6424410
Width
110
F in kN
1,2
Colour
stainless steel
MWAG 12 21 A4
Item no.
6424412
Width
210
F in kN
1,2
Colour
stainless steel
MWAG 12 31 A4
Item no.
6424414
Width
310
F in kN
1,2
Colour
stainless steel
MWAG 12 41 A4
Item no.
6424416
Width
410
F in kN
1,2
Colour
stainless steel
