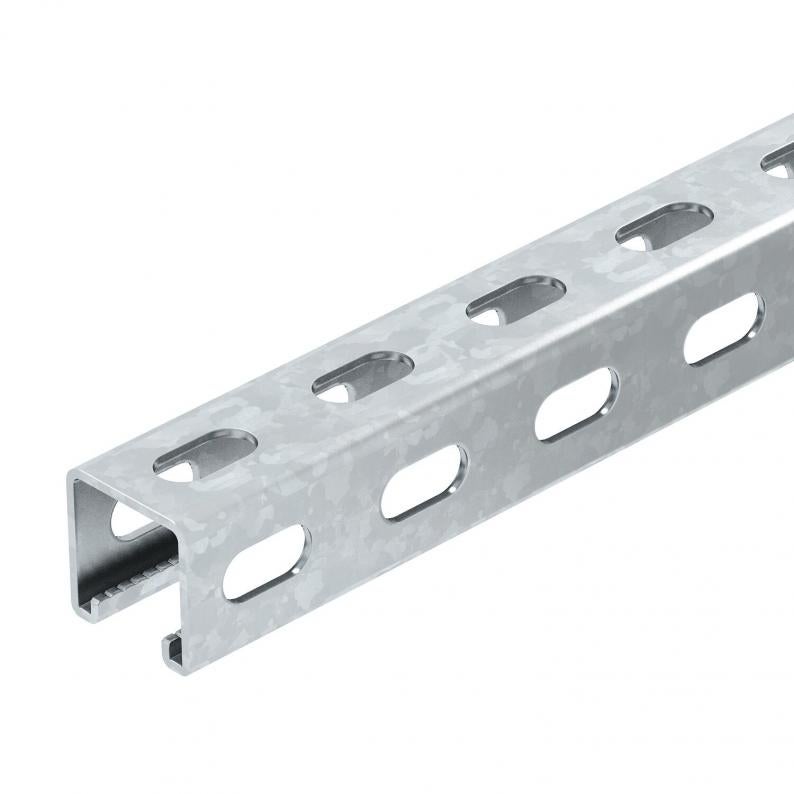

MS4141 mounting rail, slot 22 mm, FS, side perforation

MS4141 mounting rail, slot 22 mm, FS, side perforation

Type MSL4141PP1000FS
|
Item no. 1123008
|
EAN 4012195697923
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 1 m

m

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 22 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

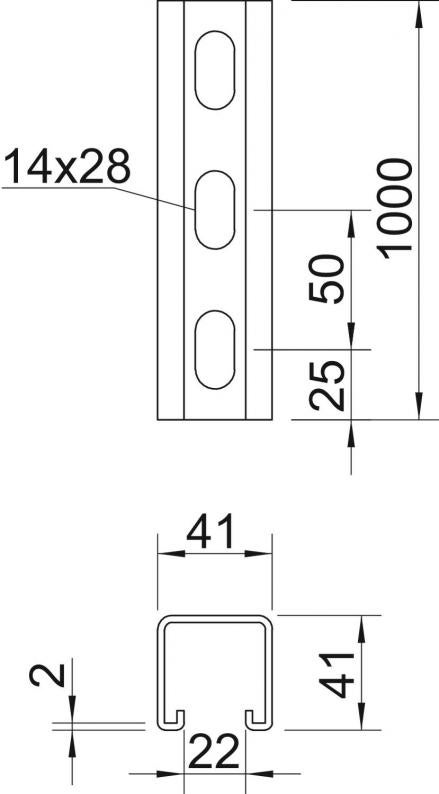

Dimensions

Length1000 mm
Width41 mm
Height41 mm
Dimension L1000 mm

Technical data

Maintain electrical functionsyes
Slot width22 mm
Material thickness2 mm
Static value A2,45 cm²
Static value ly5,18 cm⁴
Static value lz7,56 cm⁴
Static value Wy2,51 cm³
Static value Wz2,69 cm³
Hole size14x28
Profile shapeC profile
Type of perforation3 sides perforated
Drill hole spacing, centre50 mm
With perforationno
Breakableno
With toothingyes
Version forSingle profile
ROHS-conformantyes
Dimension1000x41x41
SurfaceStrip galvanised
MaterialSteel
Product seriesRail system

Environmental Data

4,7416 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate4,7416 kg CO2e / 1 Meter
CO₂ Footprint (GWP)4,7416 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Accessories

System accessories

Item no. 1147214

Slide nut ZL
Type
MS41SN M10 ZL

Smallest selling unit: 50 piece

piece

Item no. 1148322

Hammer-head bolt ZL
Type
MS41HB M10x30 ZL

Smallest selling unit: 50 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Variants

Length
MSL4141PP1000FS
Item no.
1123008
Length
1000
Width
41
Height
41
Material thickness
2
Surface
Strip galvanised
MSL4141PP3000FS
Item no.
1123010
Length
3000
Width
41
Height
41
Material thickness
2
Surface
Strip galvanised
MSL4141PP6000FS
Item no.
1123012
Length
6000
Width
41
Height
41
Material thickness
2
Surface
Strip galvanised
