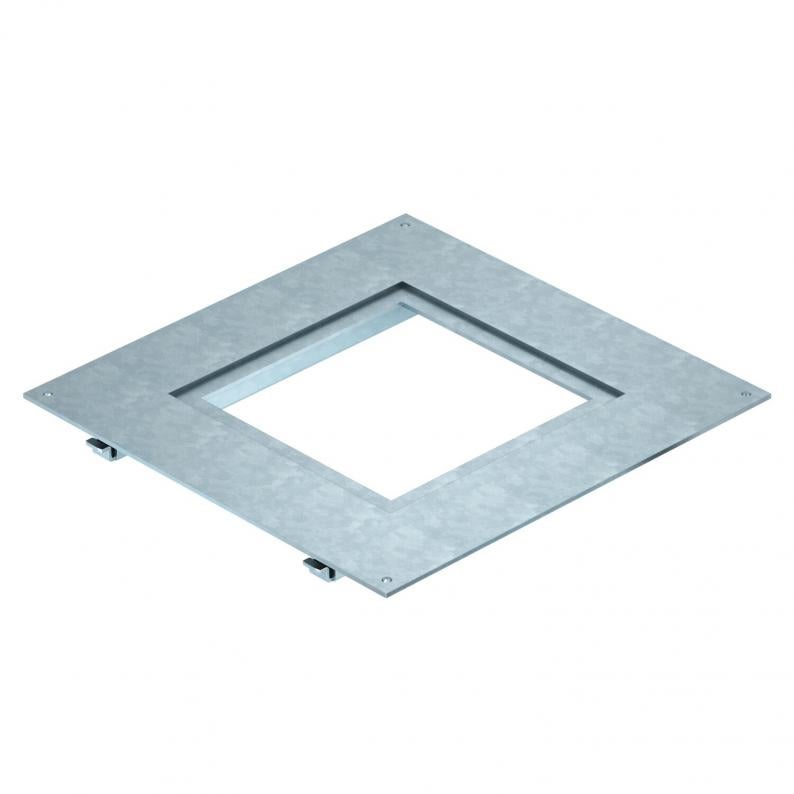

Movable mounting lid for UZD350, nominal size 4

Movable mounting lid for underfloor junction and branch boxes of type UZD350-4 for the installation or creation of an installation unit. Suitable for height-adjustable cassettes of nominal size 4. For later adaptation of the cassette position to the floor design, after the underfloor junction box has been mounted. Horizontal moving of the cassette by 17 mm in all directions possible (max. 34 mm), based on a centralised position Possible rotation up to 7°.
