Mounting lid for Telitank top, 400 mm

Mounting lid for Telitank top, 400 mm

Type OKA D 500 DAT
Item no. 7425046
EAN 4012195245407
Show all variants
Item no. / Type
Length
Width
Dimension a

Smallest selling unit: 1 piece

piece

Description

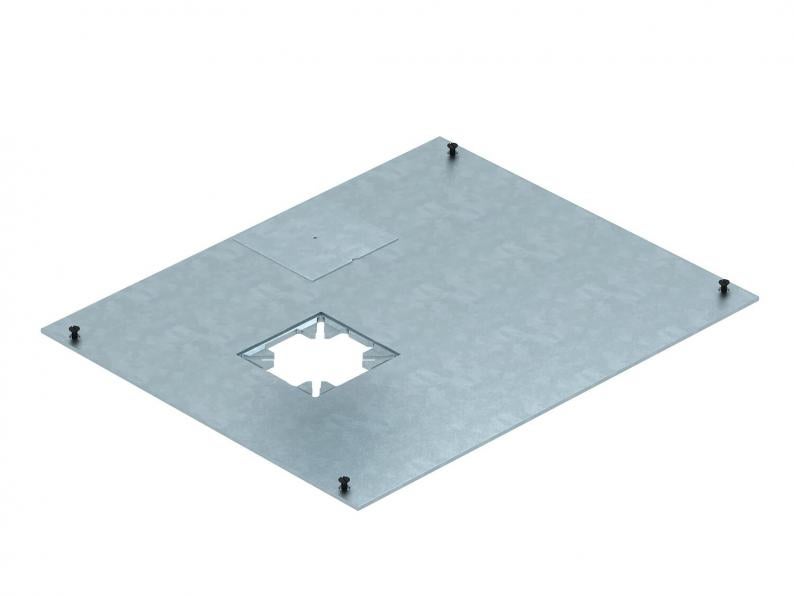

With mounting opening for the setup of a Telitank. Mounting opening closed with blanking plate lid. Lid fixing screws contained in scope of delivery.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

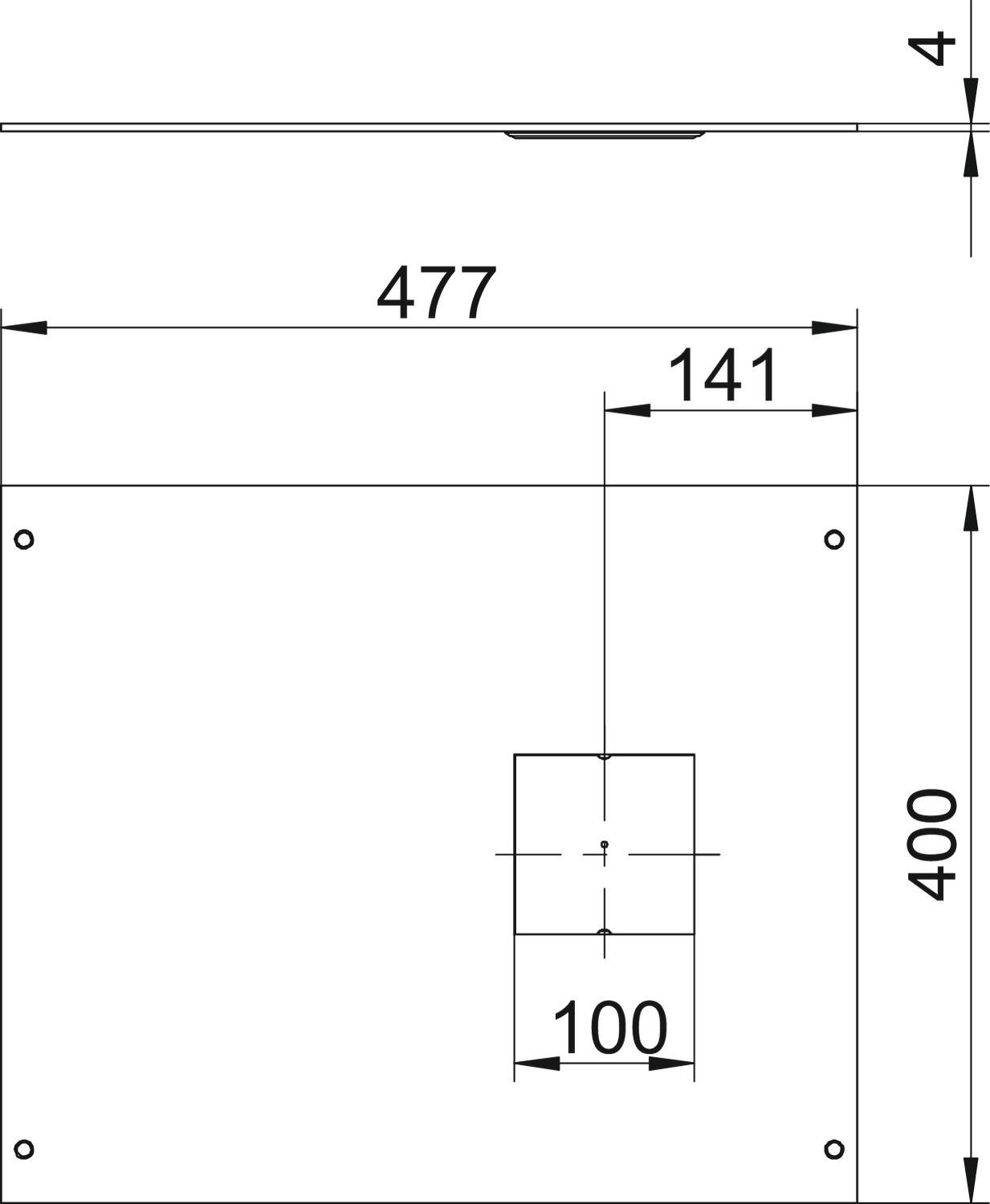

Dimensions

Length400 mm
Width500 mm
Dimension A477 mm
Dimension a100 mm
Dimension c141 mm

Technical data

Material thickness4 mm
Cover fastening, lockingno
Mounting openingSquare
Mounting opening coveryes
Number of mounting openings1
Mounting openingFor Telitank installation
ROHS-conformantyes
Dimension400x500x4
SurfaceStrip galvanised
MaterialSteel
Product seriesOKA Series

Environmental Data

18,3035 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate18,3035 kg CO2e / 1 Piece
CO₂ Footprint (GWP)18,3035 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
OKA D 500 DAT
Item no.
7425046
Length
400
Width
500
Dimension a
100
OKA D 600 DAT
Item no.
7425048
Length
400
Width
600
Dimension a
100
