Mounting lid for GESR9, 400 mm

Mounting lid for GESR9, 400 mm

Type OKA D 600 R9
Item no. 7425124
EAN 4012195245490
Show all variants
Item no. / Type
Length
Width

Smallest selling unit: 1 piece

piece

Description

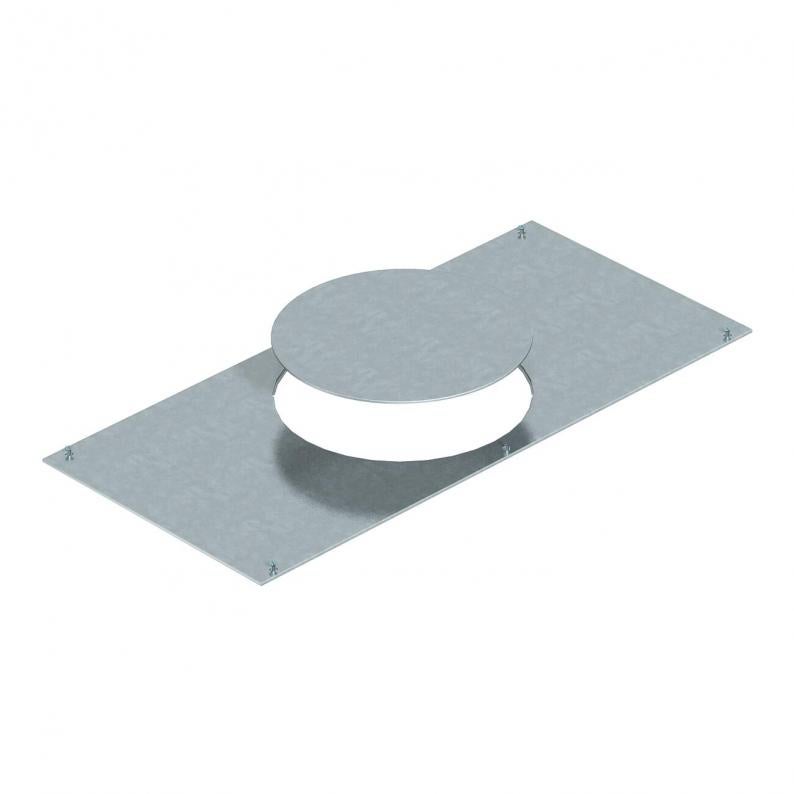

With mounting opening for the installation of an installation unit of nominal size R9. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

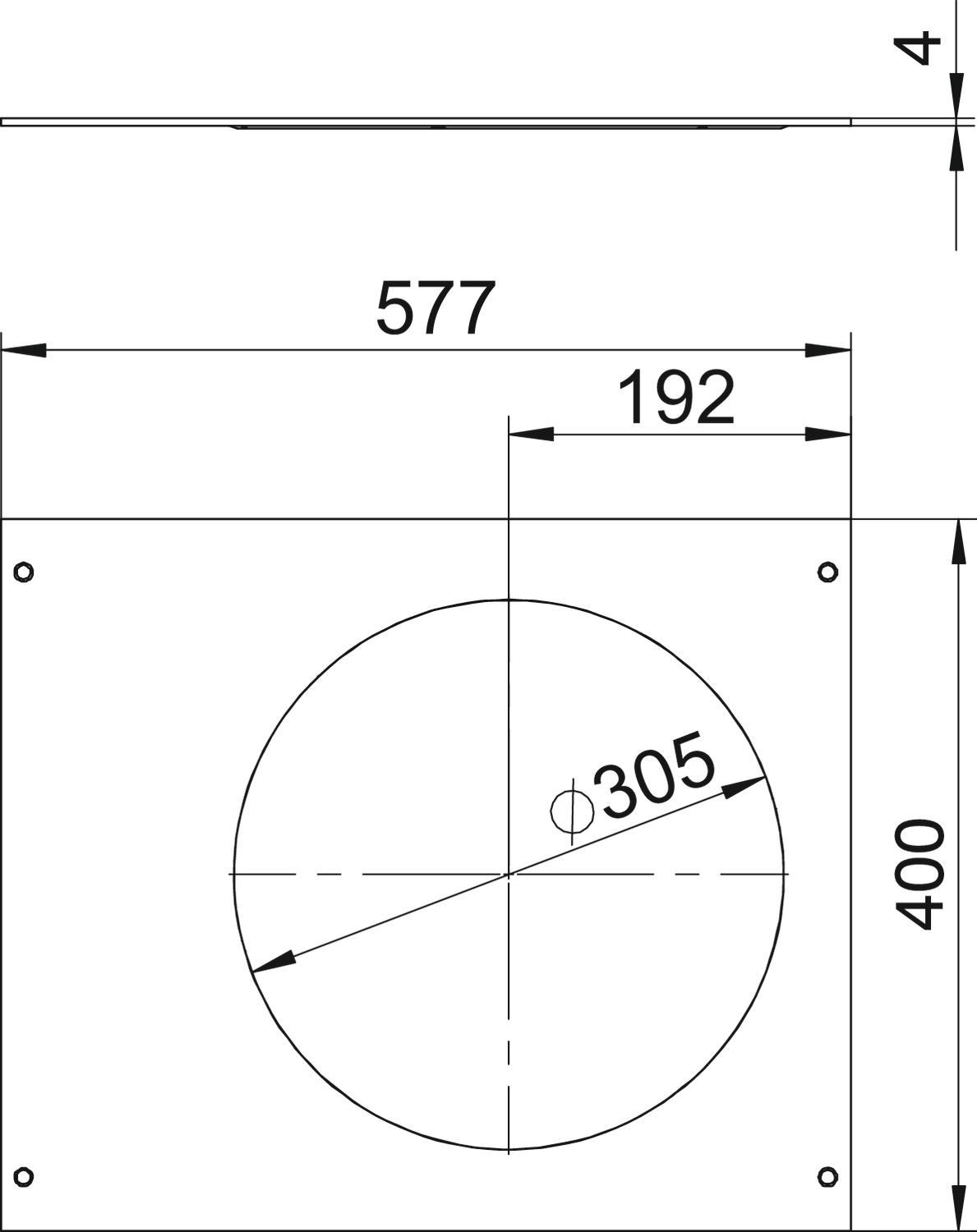

Dimensions

Length400 mm
Width600 mm
Dimension A577 mm
Dimension c192 mm
Dimension d Ø305 mm

Technical data

Material thickness4 mm
Cover fastening, lockingno
Mounting openingRound
Mounting opening coveryes
Number of mounting openings1
Mounting openingFor service outlet
ROHS-conformantyes
Dimension400x600x4
SurfaceStrip galvanised
MaterialSteel
Product seriesOKA Series

Environmental Data

23,4903 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate23,4903 kg CO2e / 1 Piece
CO₂ Footprint (GWP)23,4903 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
OKA D 500 R9
Item no.
7425122
Length
400
Width
500
OKA D 600 R9
Item no.
7425124
Length
400
Width
600
