Mounting lid for GES9, 400 mm

Mounting lid for GES9, 400 mm

Type OKA D 600 9
Item no. 7425104
EAN 4012195245476
Show all variants
Item no. / Type
Length
Width
Dimension a

Smallest selling unit: 1 piece

piece

Description

With mounting opening for the installation of an installation unit of nominal size 9. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

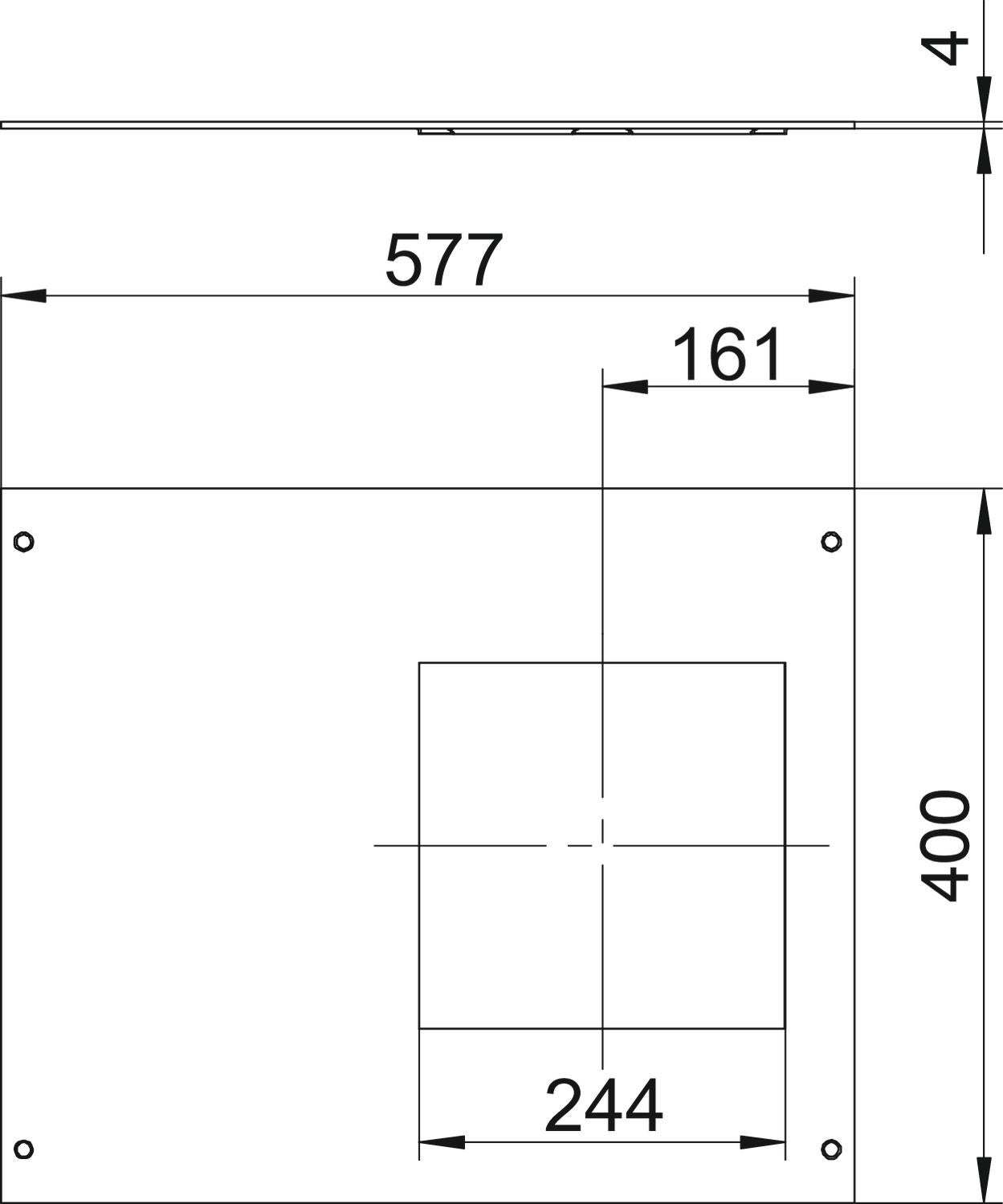

Dimensions

Length400 mm
Width600 mm
Dimension A577 mm
Dimension a244 mm
Dimension c161 mm

Technical data

Material thickness4 mm
Cover fastening, lockingno
Mounting openingSquare
Mounting opening coveryes
Number of mounting openings1
Mounting openingFor service outlet
ROHS-conformantyes
Dimension400x600x4
SurfaceStrip galvanised
MaterialSteel
Product seriesOKA Series

Environmental Data

20,9692 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate20,9692 kg CO2e / 1 Piece
CO₂ Footprint (GWP)20,9692 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
OKA D 500 9
Item no.
7425102
Length
400
Width
500
Dimension a
244
OKA D 600 9
Item no.
7425104
Length
400
Width
600
Dimension a
244
