Mounting lid for GES4, 800 mm

Mounting lid for GES4, 800 mm

Type OKA DG4 300
Item no. 7402040
EAN 4012195094067
Show all variants
Item no. / Type
Length
Width
Dimension a

Smallest selling unit: 1 piece

piece

Description

With mounting opening for the installation of an installation unit of nominal size 4. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

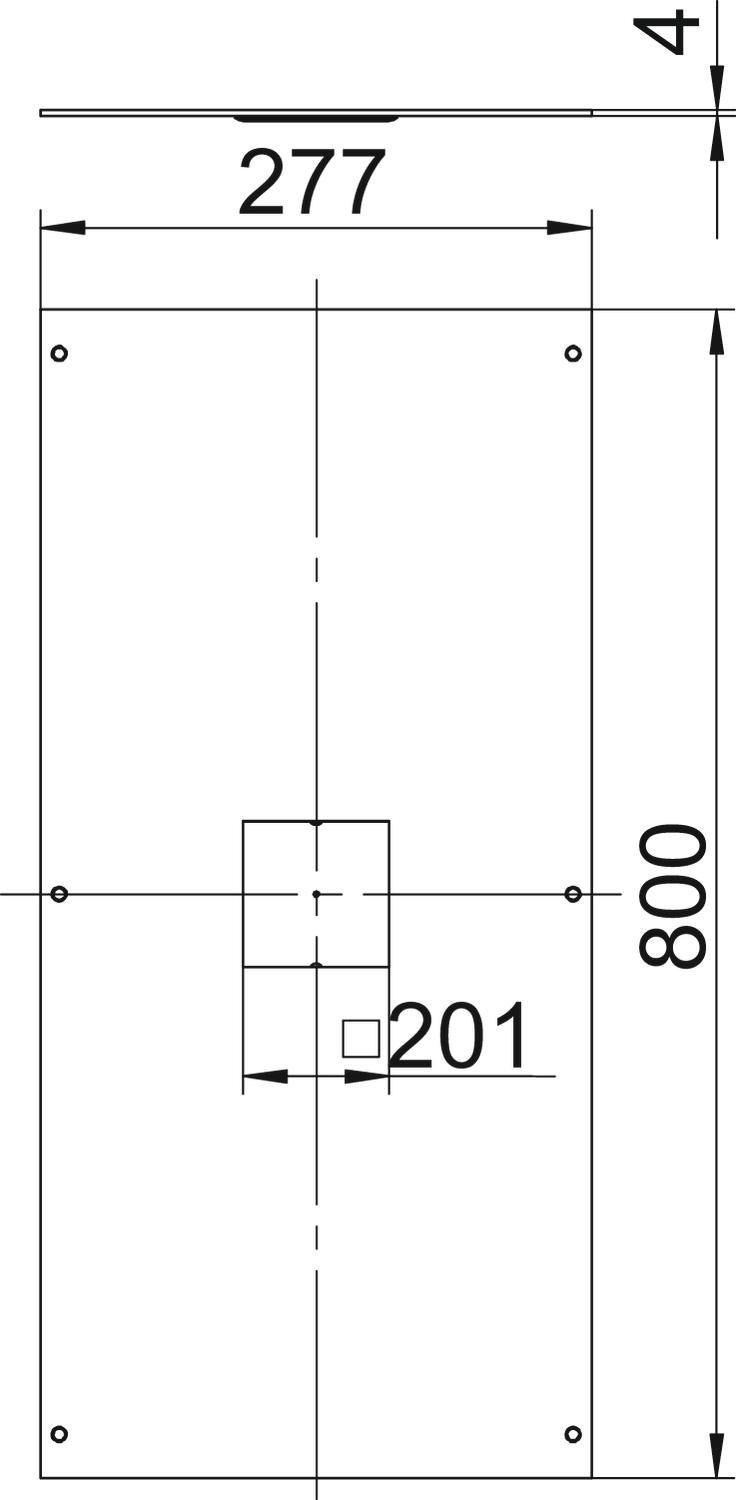

Dimensions

Length800 mm
Width300 mm
Dimension A277 mm
Dimension a201 mm

Technical data

Plate thickness4 mm
Material thickness4 mm
Installation opening for on-floor tankno
Cover fastening, lockingno
Mounting openingSquare
Number of mounting openings1
Nominal size for device installation units4
Mounting openingFor service outlet
ROHS-conformantyes
Dimension800x300x4
SurfaceStrip galvanised
MaterialSteel
Product seriesOKA Series

Environmental Data

20,5849 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate20,5849 kg CO2e / 1 Piece
CO₂ Footprint (GWP)20,5849 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
OKA DG4 300
Item no.
7402040
Length
800
Width
300
Dimension a
201
OKA DG4 400
Item no.
7402048
Length
800
Width
400
Dimension a
201
