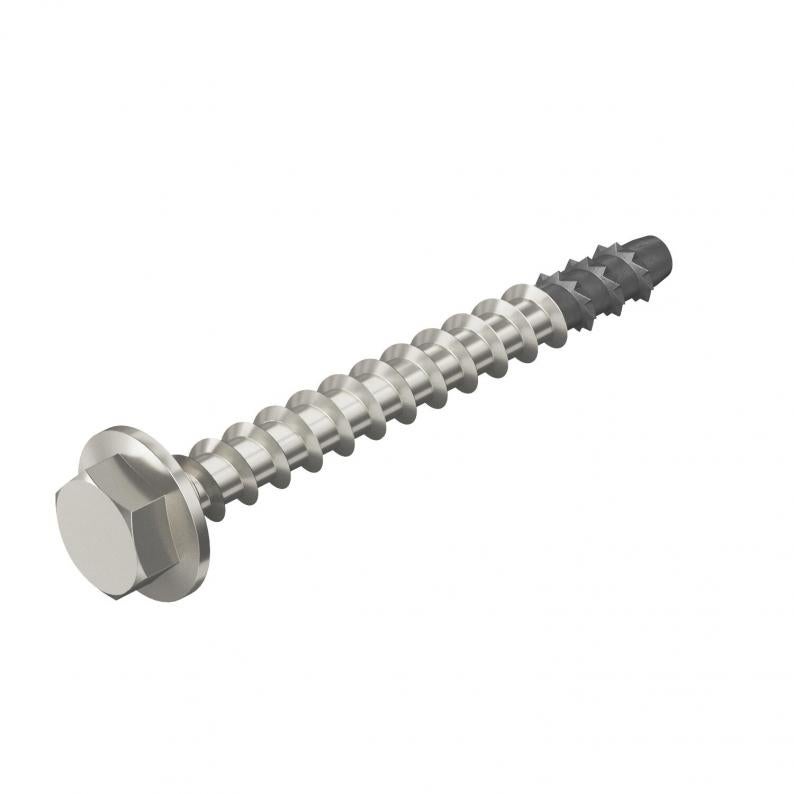

MMS-plus SS 12x105 hexagonal tie, with pressed washer, made of A4 stainless steel

MMS-plus SS 12x105 hexagonal tie, with pressed washer, made of A4 stainless steel

Type MMS+ SS12x105 A4
|
Item no. 3498174
|
EAN 4012196952205
Show all variants
Item no. / Type
Length
Dimension
Drill hole diameter, min.
Anchor length
Head diameter

Smallest selling unit: 25 piece

piece

Description

Stainless steel screw-in anchor for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With hex head drive and pressed washer to accept large loads. Suitable for fastening suspended loads from suspended supports and wall brackets in wet rooms and in outdoor areas.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection bolt tie

Technical data

Dimensions

Length105 mm
Dimension L105 mm

Technical data

Thread12
Hardenedyes
Anchor/nail/bolt versionSpiral anchor
Dimension12x105
Clamping strength15 mm
WAF15
Thread diameter ST12
Head shapeHexagonal
Screw systemHexagonal
ROHS-conformantyes
Drill hole diameter, min.10 mm
Drill hole depth110 mm
Anchor length105 mm
Head diameter22 mm
Dimension12x105mm
MaterialStainless steel 1.4401
Colourstainless steel
Fire resistance class EN 13501-1R30, R60, R90, R120

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Length
Dimension
Anchor length
MMS+ SS12x105 A4
Item no.
3498174
Length
105
Dimension
12x105
WAF
15
Screw system
Hexagonal
Drill hole diameter, min.
10
Anchor length
105
Head diameter
22
MMS+ SS12x120 A4
Item no.
3498176
Length
120
Dimension
12x120
WAF
15
Screw system
Hexagonal
Drill hole diameter, min.
10
Anchor length
120
Head diameter
22
