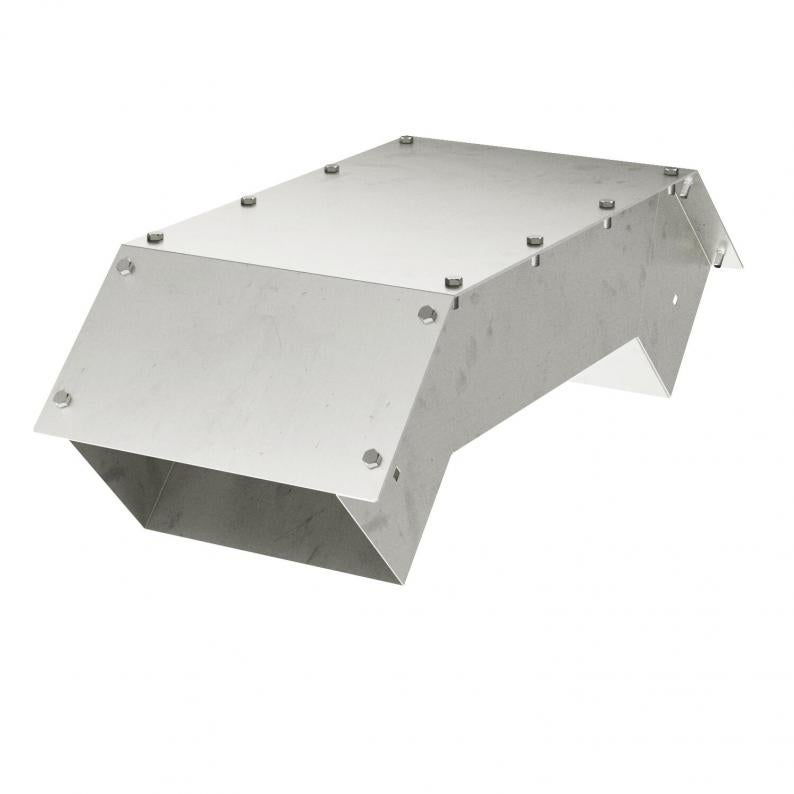

Metal installation duct PLMR for outdoor applications
Type PLMR LFD
|Item no. 7218204
|EAN 4012197422837
Item no. / Type
7218204 / PLMR LFD
Colour
stainless steel
Smallest selling unit: 1 piece
1piece
piece
Description
Level, rising version. Suitable for the installation duct PLMR. To overcome obstacles in outdoor areas. Screws and nuts included.
Technical data
Dimensions
| Length | 607 mm |
|---|---|
| Width | 260 mm |
| Height | 187 mm |
Technical data
| Usable cross-section | 18500 mm² |
|---|---|
| Angle of the bend | 45 ° |
| Cover fastening | Screw |
| Number of flammable sides | 4 |
| Dimension | 607x260x187 |
| Surface | Bright |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Product series | PYROLINE® PLMR |
Environmental Data
28,8737 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 28,8737 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 28,8737 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
