Media and communication pole for schools
Type ISSMKSRW ST P12
|Item no. 6286740
|EAN 4012197257552
Item no. / Type
6286740 / ISSMKSRW ST P12
Smallest selling unit: 1 piece
1piece
piece
Description

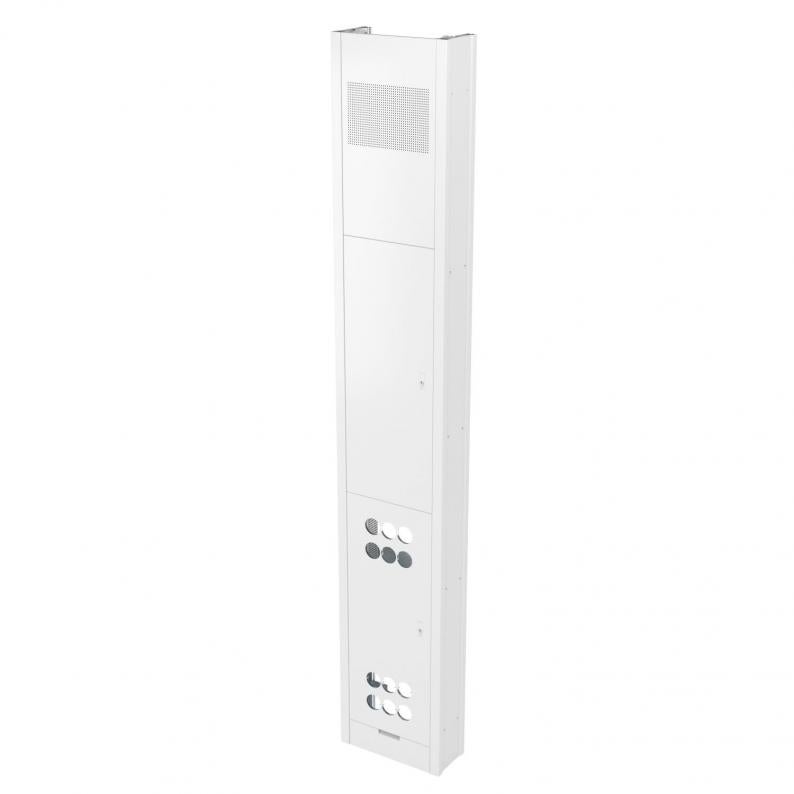

Media and communication pole for accommodating electrical installation components and for vertical, multi-storey cable routing, consisting of:
- 1 acoustic field with cut-outs for sound outlet
- Space for the installation of a surface-mounted or built-in clock
- 1 distributor field with 2 low-voltage distributors behind it (2 x 36 PUs)
- 1 device field with cut-outs for accessory mounting boxes (d = 68 mm)
- 1 floor panel for cable outlet
- 1 acoustic field with cut-outs for sound outlet
- Space for the installation of a surface-mounted or built-in clock
- 1 distributor field with 2 low-voltage distributors behind it (2 x 36 PUs)
- 1 device field with cut-outs for accessory mounting boxes (d = 68 mm)
- 1 floor panel for cable outlet
Technical data
Dimensions
| Length | 2820 mm |
|---|---|
| Width | 460 mm |
| Height | 200 mm |
| Pole height, min. | 2800 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Pole shape | Rectangular |
| Changes according to location | no |
| Ceiling mounting | no |
| Floor mounting | yes |
| Cable entry | Top/bottom |
| Protection rating | IP20 |
| Protection rating IK code | IK10 |
| Continuous profile | no |
| Version for | Miscellaneous |
| Fastening type | Bolts |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 2820x460x200 |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| Product series | ISSMKS |
Environmental Data
326,4259 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 326,4259 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 326,4259 kg CO₂e |
| Determination date of CO2 value | 2025-05-27T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
