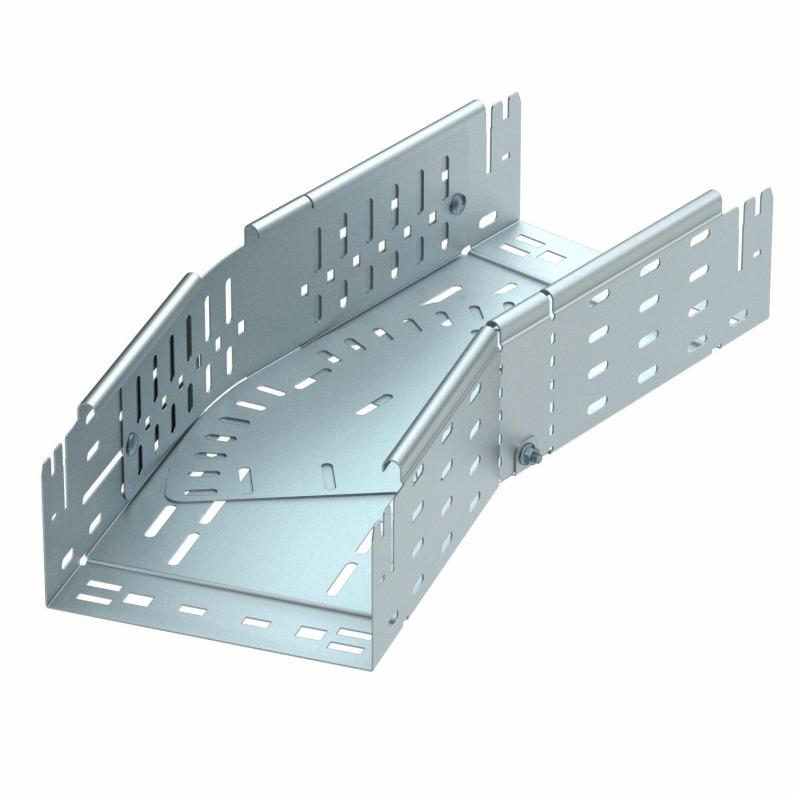

Magic bend, variable 110 FS
Type RBMV 110 FS
Item no. 6040680
EAN 4012195992745
Item no. / Type
6040680 / RBMV 110 FS
Width
100 mm
Surface
Strip galvanised
Material
Steel
Colour
zinc
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
Magic bend 0°–90°, variable, with quick connector system. For all cable tray types of 110 mm side height.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension L | 340 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Bend (angle) | Adjustable |
| Change of direction | Horizontal |
| ROHS-conformant | yes |
| Dimension | 110x100 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Click fastening |
Environmental Data
3,8944 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,8944 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 3,8944 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
