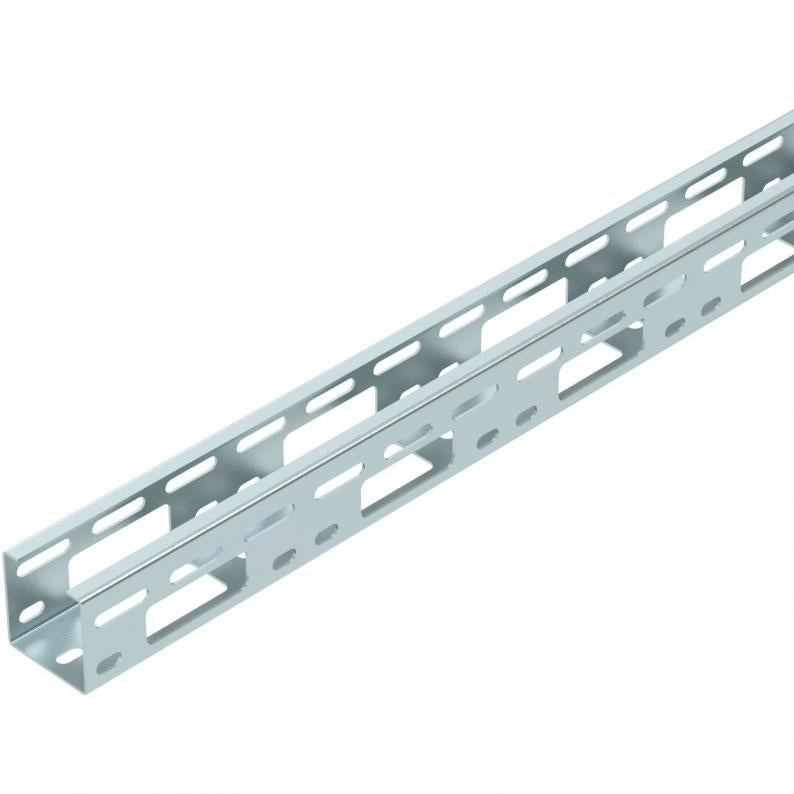

Luminaire support channel 50 FS

Luminaire support channel 50 FS

Type LTS 50 FS
|
Item no. 6075000
|
EAN 4012196935956
Show all variants
Item no. / Type
6075000 / LTS 50 FS
Length
6000 mm
Width
50 mm
Plate thickness
1,5 mm

Smallest selling unit: 6 m

m

Description

Perforated luminaire support channel for cable routing and luminaire mounting.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • AZ small duct, side height 50 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length6000 mm
Width50 mm
Height50 mm
Dimension B50 mm

Technical data

Connector versionWithout connectors
Usable cross-section22 cm²
Plate thickness1,5 mm
Dimension50x50x6000
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Loads

Support spacing 1.0 m2,5 kN/m
Support spacing 1.5 m2 kN/m
Support spacing 2.0 m1,2 kN/m
Support spacing 2.5 m0,85 kN/m
Support spacing 3.0 m0,5 kN/m

Environmental Data

4,2317 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate4,2317 kg CO2e / 1 Meter
CO₂ Footprint (GWP)4,2317 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1
