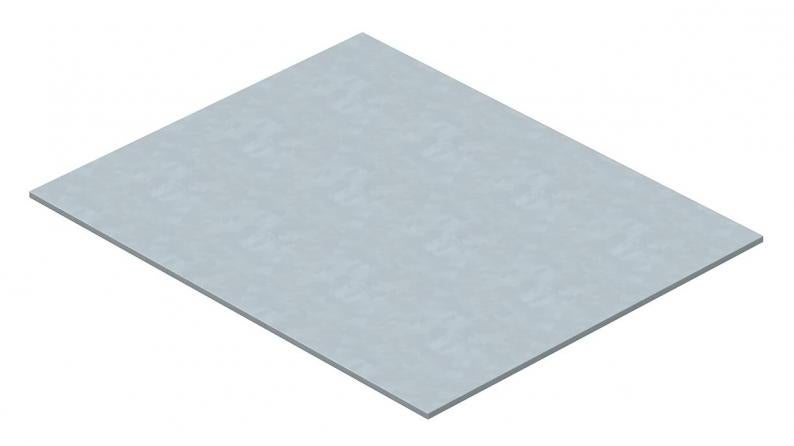

Lid blind plate for rectangular mounting opening

Lid blind plate for rectangular mounting opening

Type DUG B 6
Item no. 7407172
EAN 4012195110828
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Cover blanking plate for flushfloor closing of a rectangular mounting opening in a DUG mounting lid. The size of the mounting opening can be determined from the type designation.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Material thickness3 mm
Suitable for screed-covered underfloor ductsyes
Suitable for screed-flush closed underfloor ductsno
Installation opening for on-floor tankno
Seal installation optionno
Mounting opening coveryes
Heavy-duty versionno
Nominal size for device installation units6
Mounting openingWithout
ROHS-conformantyes
Dimension258x205x3
SurfaceStrip galvanised
MaterialSteel
Product seriesUZD Underfloor junction box

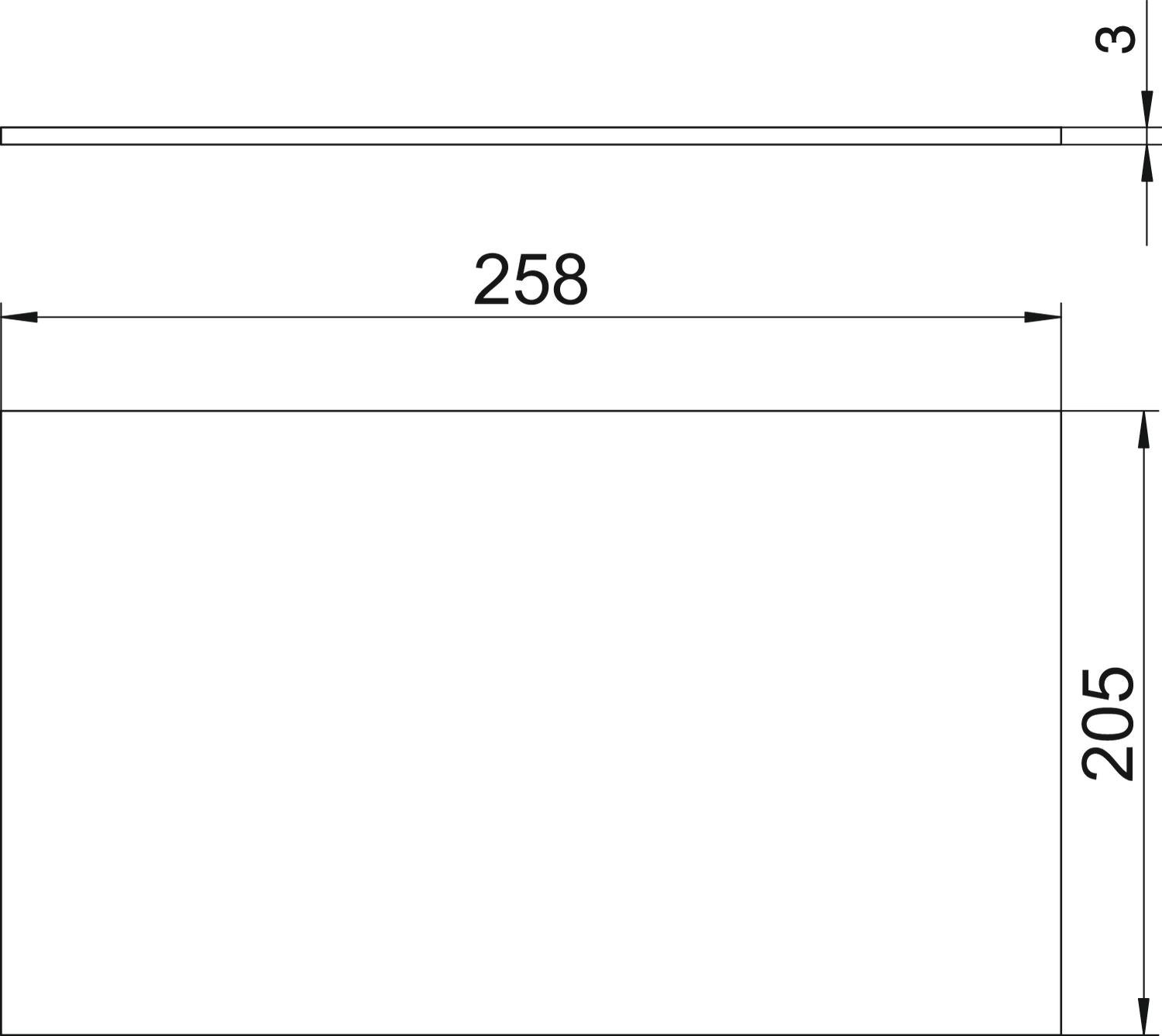

Dimensions

Dimension A205 mm
Dimension B258 mm

Environmental Data

3,297 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate3,297 kg CO2e / 1 Piece
CO₂ Footprint (GWP)3,297 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

DUG B 2
Item no.
7407164
DUG B 4
Item no.
7407168
DUG B 6
Item no.
7407172
DUG B 9
Item no.
7407180
