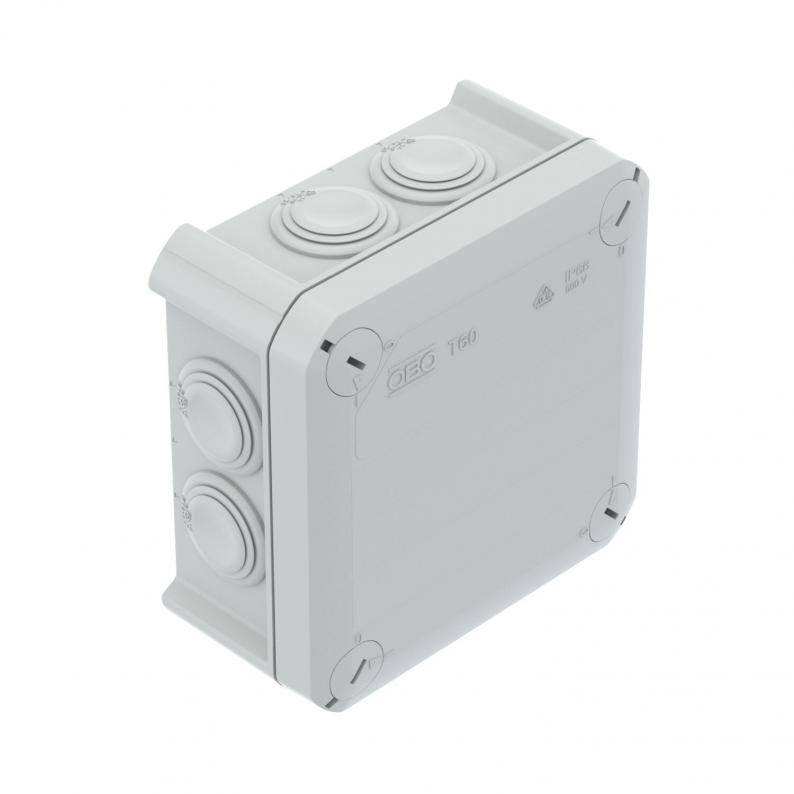

Junction box T 60, plug-in seal, OBO EcoLine

Junction box T 60, plug-in seal, OBO EcoLine

Type T 60 ECO
|
Item no. 2007064
|
EAN 4012197497156
Show all variants
Item no. / Type
Clear internal dimensions

Smallest selling unit: 5 piece

piece

Description

Junction box for the connection of cables indoors and in protected outdoor areas. Square design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M25 entry
  • Nominal cross-section 6 mm²
  • 7 cable entries
  • gas-/battery-actuated setting tool
  • IK Code 07
  • Nominal voltage 500 V
  • OBO ECOLine
  • CO2-reduced material
  • Recycling material ratio in %
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length114 mm
Width114 mm
Height57 mm
Clear internal dimensions100x100x48 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedno
No. of entries7
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.6 mm²
ShapeSquare
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-25 °C
Permitted temperature range, max.65 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension114x114x57
MaterialPolypropylene Eco
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid

Environmental Data

0,2766 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,2766 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2766 kg CO₂e
Determination date of CO2 value2026-02-27T00:00:00.000+0100
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Recycled material content 45 %

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Clear internal dimensions
T 60 ECO
Item no.
2007064
Clear internal dimensions
100x100x48
No. of entries
7
Protection rating
IP66
Colour
Light grey; RAL 7035
T 60 OE ECO
Item no.
2007241
Clear internal dimensions
100x100x46
Protection rating
IP66
Colour
Light grey; RAL 7035
