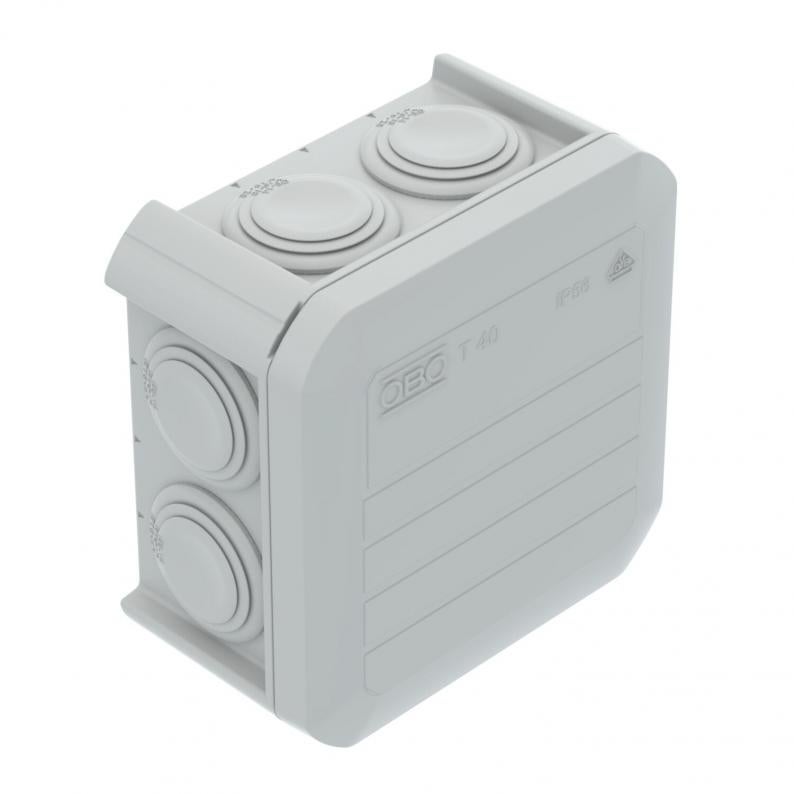

Junction box T 40, plug-in seal, OBO EcoLine

Junction box T 40, plug-in seal, OBO EcoLine

Type T 40 ECO
|
Item no. 2007047
|
EAN 4012197495954
Show all variants
Item no. / Type
Clear internal dimensions
No. of entries

Smallest selling unit: 5 piece

piece

Description

Junction box for the connection of cables indoors and in protected outdoor areas. Square design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside. With fixed clamping cover. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • M25 entry
  • Nominal cross-section 4 mm²
  • 7 cable entries
  • gas-/battery-actuated setting tool
  • Nominal voltage 500 V
  • IK Code 07
  • OBO ECOLine
  • CO2-reduced material
  • Recycling material ratio in %
  • Packaging without plastic
  • CO₂ footprint (PCF)

Technical data

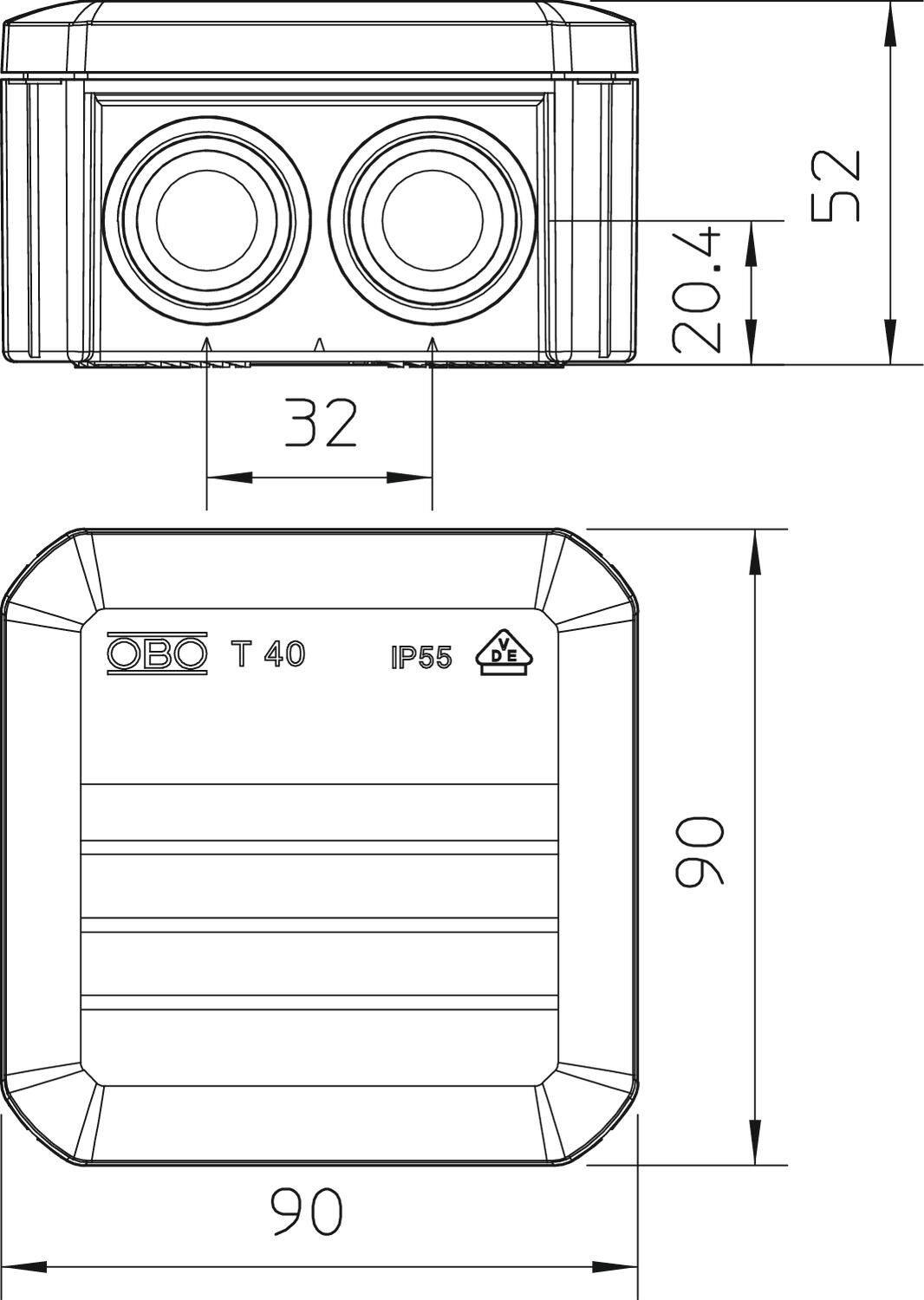

Dimensions

Length90 mm
Width90 mm
Height52 mm
Clear internal dimensions77x77x46 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedno
No. of entries7
Entry from rearyes
Transparent lidno
Protection ratingIP56
Nominal voltage500 V
Expandableyes
with lidyes
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.4 mm²
ShapeSquare
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-25 °C
Permitted temperature range, max.65 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension90x90x52
MaterialPolypropylene Eco
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid

Environmental Data

0,1148 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
Recycled material content 41 %
CO2 Footprint (GWP) Cradle-to-Gate0,1148 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1148 kg CO₂e
Determination date of CO2 value2026-02-27T00:00:00.000+0100
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (1)

Variants

No. of entries
T 40 ECO
Item no.
2007047
Clear internal dimensions
77x77x46
No. of entries
7
Protection rating
IP56
Colour
Light grey; RAL 7035
T 40 OE ECO
Item no.
2007225
Clear internal dimensions
77x77x46
No. of entries
0
Protection rating
IP56
Colour
Light grey; RAL 7035
