Joint plate A2

Joint plate A2

Type SSLB 300 A2
|
Item no. 7070365
|
EAN 4012196095841
Show all variants
Item no. / Type
Width
Height
Plate thickness
Dimension B

Smallest selling unit: 20 piece

piece

Description

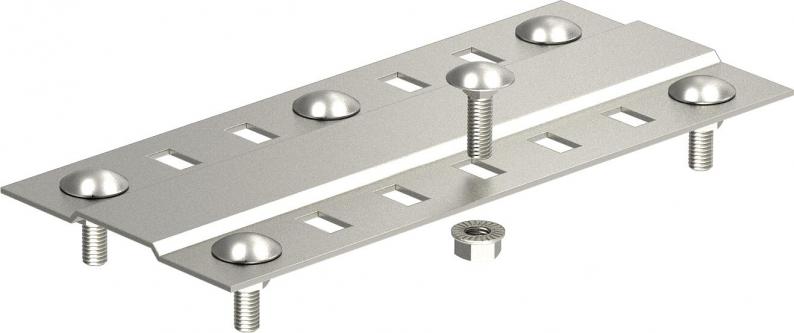

Wide joint plate for use in all cable trays and wide span cable trays.

Including appropriate fastening material.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Width285 mm
Height4 mm
Dimension B300 mm

Technical data

Maintain electrical functionsno
Wide-span versionyes
Rustproof steel, pickledno
Plate thickness1,5 mm
Quantity of bolts3 St.
Suitable for cable trayyes
Suitable for cable tray system height35 mm
Version forJoint plate
Connection typeScrew connector
ROHS-conformantyes
DimensionB300mm
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel

Environmental Data

1,5666 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate1,5666 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,5666 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (4)
Product images (1)
Tender specifications (1)

Variants

Width
Dimension B
SSLB 100 A2
Item no.
7070353
Width
85
Height
4
Plate thickness
1,5
Dimension B
100
SSLB 200 A2
Item no.
7070361
Width
185
Height
4
Plate thickness
1,5
Dimension B
200
SSLB 300 A2
Item no.
7070365
Width
285
Height
4
Plate thickness
1,5
Dimension B
300
SSLB 400 A2
Item no.
7070369
Width
385
Height
4
Plate thickness
1,5
Dimension B
400
SSLB 500 A2
Item no.
7070373
Width
485
Height
4
Plate thickness
1,5
Dimension B
500
SSLB 600 A2
Item no.
7070381
Width
585
Height
4
Plate thickness
1,5
Dimension B
600
