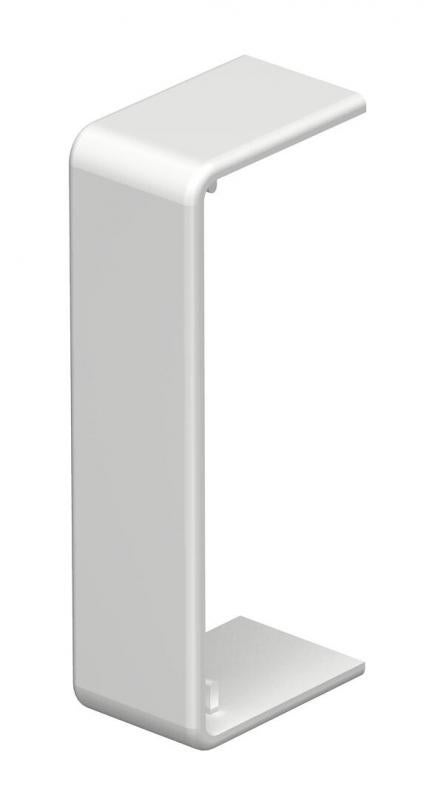

Joint cover, for trunking, type WDK 20050

Joint cover, for trunking, type WDK 20050

Type WDK HS20050RW
Item no. 6154069
EAN 4012196974481
Show all variants
Item no. / Type
Colour

Smallest selling unit: 10 piece

piece

Description

Joint cover for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length14 mm
Width53 mm
Height20 mm

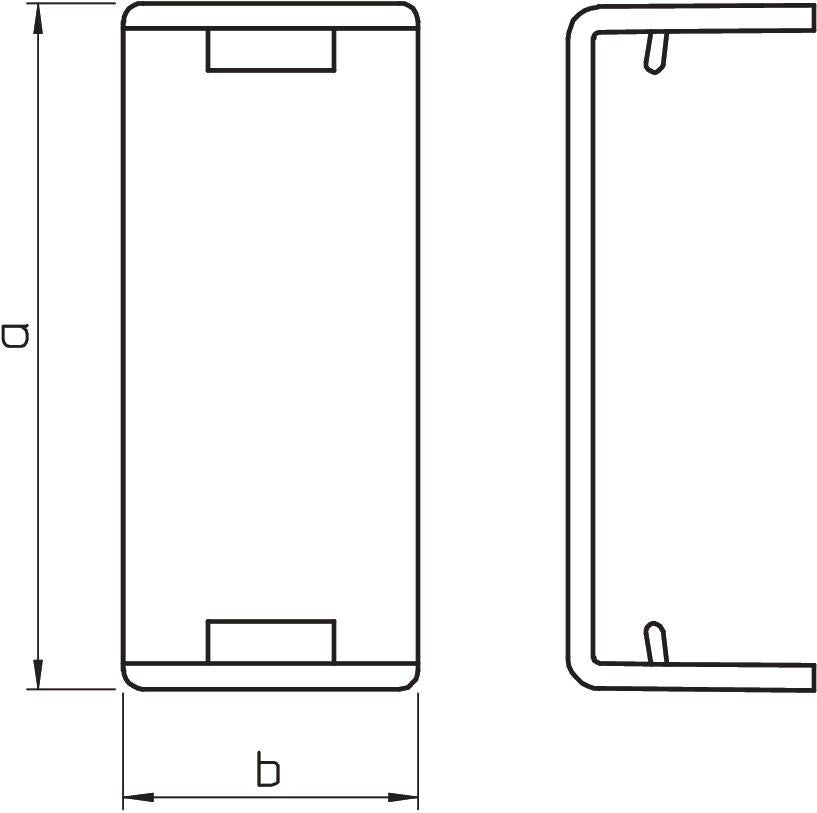

Dimension H50 mm
Dimension b14 mm
Dimension a53 mm

Technical data

for duct dimension20x50
Halogen-freeno
Protection ratingIP30
Protection rating IK codeIK04
ShapeSymmetrical
Version forTrunking cut cover
Fastening typeLockable
ROHS-conformantyes
Cover width14 mm
Trunking depth20 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension20x50mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Product seriesWDK

Environmental Data

0,0117 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0117 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0117 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HS20050CW
Item no.
6152104
Colour
Cream; RAL 9001
WDK HS20050RW
Item no.
6154069
Colour
Pure white; RAL 9010
